Fastener Specifications (3)
Fastener Specifications Table 1: Front Seat Belts Table 2: Second Row Seat Belts Table 3: Third Row Seat Belts

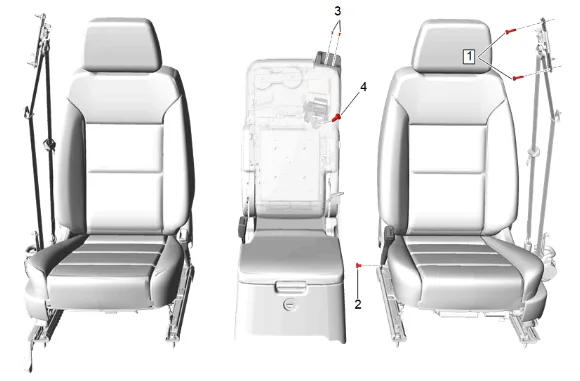

Front Seat Belts
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure | ||
|---|---|---|---|---|---|---|---|
| e nent d Metric (English) | |||||||
| 1 | Front Seat Belt Adjust Bolt [2x] | — | Yes | 45 Y (33 lb ft) | Front Seat Belt Guide Adjuster Replacement | ||
| 2 | Front Seat Belt Buckle Bolt | — | Yes | 45 Y (33 lb ft) | Front Seat Belt Buckle Replacement | ||
| 3 | Front Seat Belt Opening Bezel Bolt [2x] | — | — | 1.1 Y(10 lb in) | Front Seat Belt Opening Bezel Replacement | ||
| 4 | Front Seat Belt Retractor Bolt | — | — | 45 Y (33 lb ft) | Front Seat Center Belt Retractor Replacement |

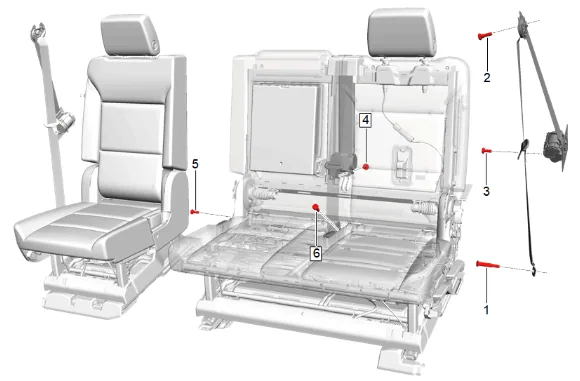

Second Row Seat Belts
| Callou | t Component Name | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Rear Seat Belt Anchor Plate Bolt | — | — | 45 Y (33 lb ft) | Rear Seat Belt Retractor Replacement |
| 2 | Rear Seat Belt Guide Bolt | — | — | 45 Y (33 lb ft) | Rear Seat Belt Retractor Replacement |
| 3 | Rear Seat Belt Retractor Bolt | — | — | 45 Y (33 lb ft) | Rear Seat Belt Retractor Replacement |
| 4 | Rear Center Seat Belt Buckle Bolt (60 Percent Seat) | — | — | 75 Y (55 lb ft) | Rear Seat Center Belt Retractor Replacement |
| 5 | Rear Seat Belt Buckle Bolt | — | — | 45 Y (33 lb ft) | Rear Seat Belt Buckle Replacement |
| 6 | Rear Seat Center Belt Anchor Plate Bolt (60 Percent Seat) | — | — | 45 Y (33 lb ft) | Rear Seat Belt Buckle Replacement |
Third Row Seat Belts
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | 3rd Row Center Seat Belt Retractor Bolt [2x] | — | Yes | 45 Y (33 lb ft) | 3rd Row Center Seat Belt Retractor Replacement |
| 2 | 3rd Row Seat Belt Anchor Bolt | — | — | 45 Y (33 lb ft) | 3rd Row Seat Belt Retractor Replacement - Left Side |
| 3rd Row Seat Belt Retractor Replacement - Right Side | |||||
| 3 | 3rd Row Seat Belt Guide Bolt | — | — | 45 Y (33 lb ft) | 3rd Row Seat Belt Retractor Replacement - Left Side |
| 3rd Row Seat Belt Retractor Replacement - Right Side |
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 4 | 3rd Row Seat Belt Retractor Bolt | — | — | 45 Y (33 lb ft) | 3rd Row Seat Belt Retractor Replacement - Left Side |
| 3rd Row Seat Belt Retractor Replacement - Right Side | |||||
| 5 | 3rd Row Seat Nut [2x] | — | — | 45 Y (33 lb ft) | 3rd Row Seat Belt Buckle Replacement |
