Engine Oil Cooler Connector Replacement - Upper
Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

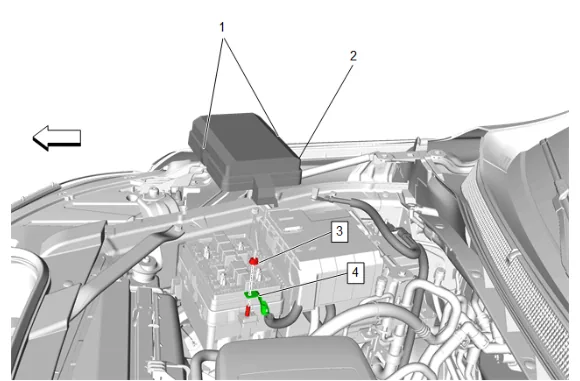

- Retaining Tab (1) » Disengage [2x]
- Engine Wiring Harness Junction Block Cover (2) » Remove
- Battery Positive Cable Nut (3) » Remove
- Starter Solenoid Cable (4) » Remove

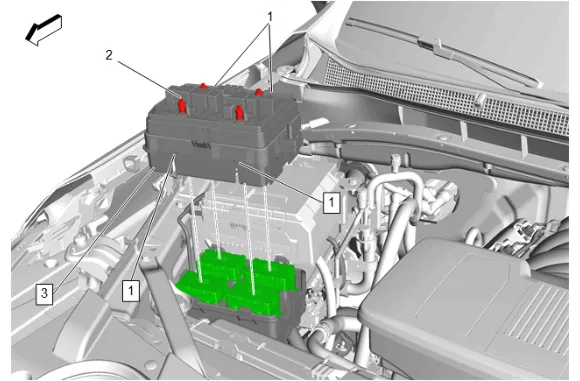

- Engine Wiring Harness Junction Block Bolt (2) » Loosen [4x]
- Retaining Tab (1) » Disengage [4x]
- Engine Wiring Harness Junction Block (3) » Remove

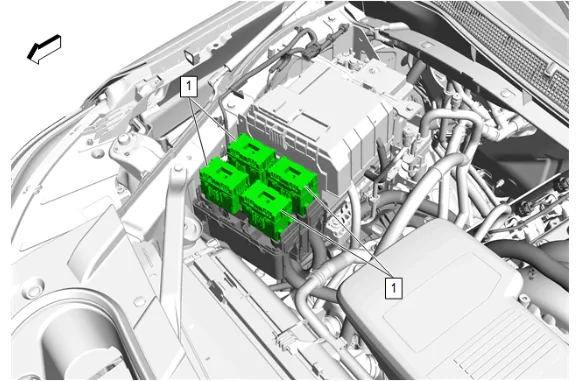

- Electrical Connector (1) » Remove [4x]

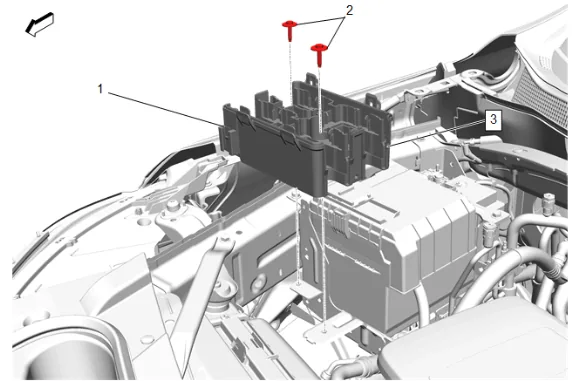

- Engine Wiring Harness Fuse Block Bracket Bolt (2) » Remove [2x]
- Retaining Tab (1) » Disengage
- Engine Wiring Harness Fuse Block Bracket (3) » Remove

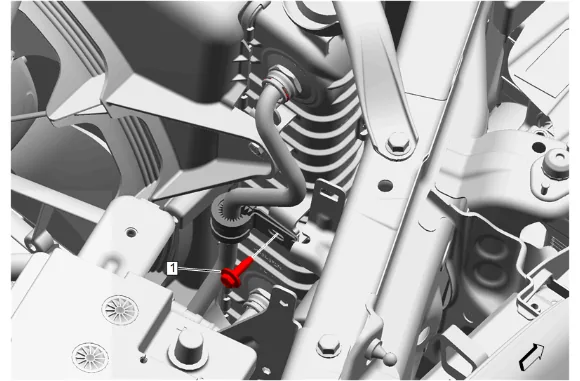

- Engine Oil Cooler Pipe Bracket Bolt (1) » Remove
- Engine Oil Cooler Connector Retainer (1) » Remove

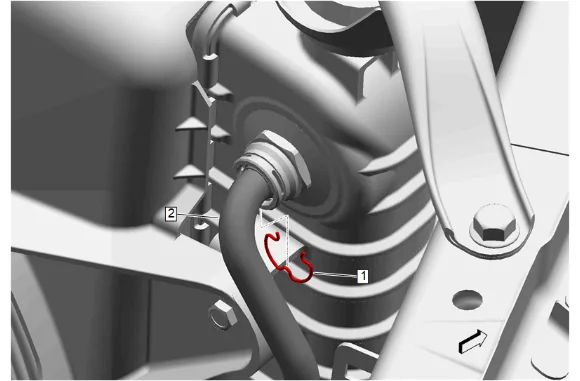

- Engine Oil Cooler Hose (2) @ Engine Oil Cooler Connector » Disconnect

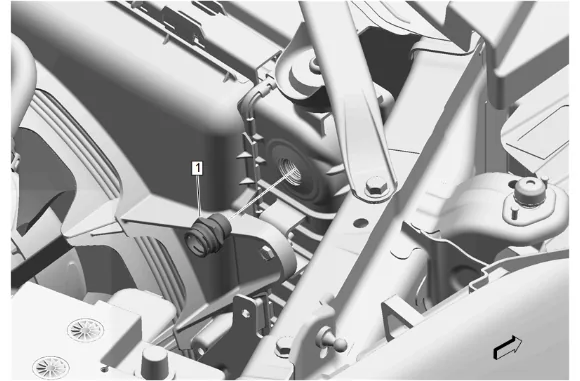

- Engine Oil Cooler Connector (1) » Remove Installation Procedure
-
Engine Oil Cooler Connector (1) » Install — Fastener Specifications
-
Engine Oil Cooler Hose (2) @ Engine Oil Cooler Connector » Connect
-
Engine Oil Cooler Connector Retainer (1) » Install
-
Engine Oil Cooler Pipe Bracket Bolt (1) » Install — Fastener Specifications
-
Engine Wiring Harness Fuse Block Bracket (3) » Install
-
Retaining Tab (1) » Engage
-
Engine Wiring Harness Fuse Block Bracket Bolt (2) » Tighten [2x] — Fastener Specifications
-
Electrical Connector (1) » Install [4x]
-
Engine Wiring Harness Junction Block (3) » Install
-
Retaining Tab (1) » Engage [4x]
-
Engine Wiring Harness Junction Block Bolt (2) » Tighten [4x] — Fastener Specifications
-
Starter Solenoid Cable (4) » Install
-
Battery Positive Cable Nut (3) » Install and tighten — Fastener Specifications
-
Engine Wiring Harness Junction Block Cover (2) » Install
-
Retaining Tab (1) » Engage [2x]
-
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
