Tahoe / Yukon Service Manual

Turn Bulb Replacement

Removal Procedure

  1. Open the rear compartment lid.
Turn Bulb Replacement — figure 1
Turn Bulb Replacement — figure 1
  1. Using the appropriate tool, release the tabs on the back body opening side center gutter.
Turn Bulb Replacement — figure 2
Turn Bulb Replacement — figure 2

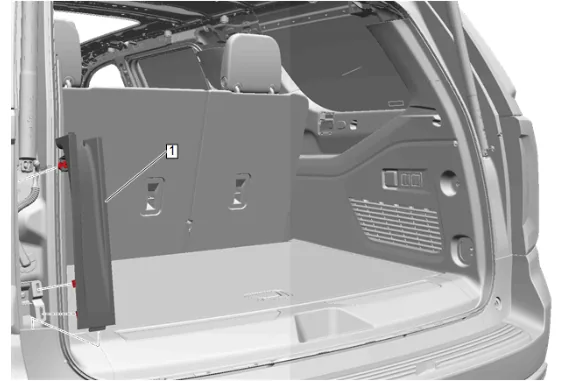

  1. Release the back body opening side lower gutter retainers and remove the back body opening side lower gutter (1).
Turn Bulb Replacement — figure 3
Turn Bulb Replacement — figure 3

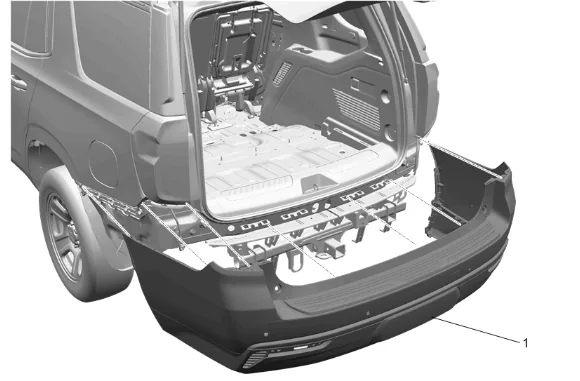

  1. Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation
Turn Bulb Replacement — figure 4
Turn Bulb Replacement — figure 4

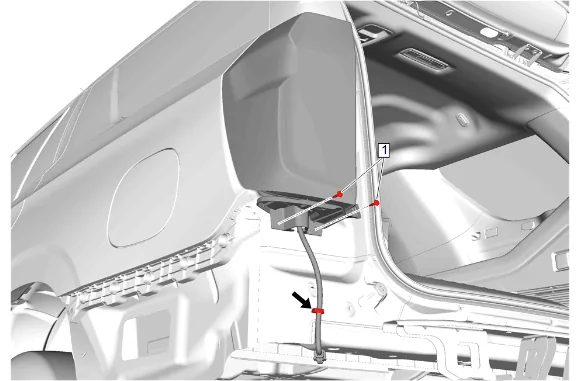

  1. Rear Body Structure Stop Lamp Bolt (1) » Remove [2x]
  2. Disconnect the electrical connector.
  3. Release the retaining tab.
Turn Bulb Replacement — figure 5
Turn Bulb Replacement — figure 5

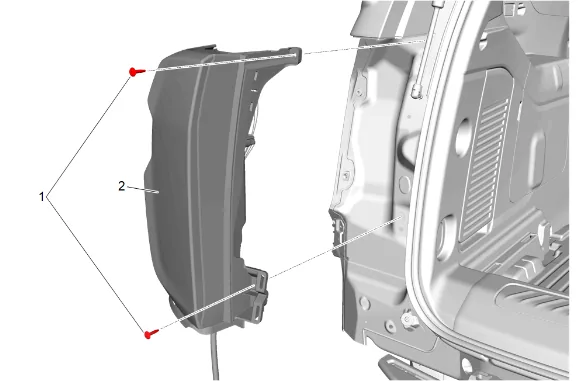

  1. Rear Body Structure Stop Lamp Bolt (1) » Remove [2x]
  2. Rear Body Structure Stop Lamp (2) » Remove
Turn Bulb Replacement — figure 6
Turn Bulb Replacement — figure 6
  1. Rotate the turn bulb socket (1) a quarter turn counterclockwise to release.
Turn Bulb Replacement — figure 7
Turn Bulb Replacement — figure 7

  1. Turn Bulb Socket (1) » Remove

  2. Remove the turn bulb (2) straight from the turn bulb socket (1). Installation Procedure

  3. Install the turn bulb (2) straight into the turn bulb socket (1).

  4. Turn Bulb Socket (1) » Install

  5. Rotate the turn bulb socket (1) a quarter turn clockwise to engage.

Turn Bulb Replacement — figure 8
Turn Bulb Replacement — figure 8

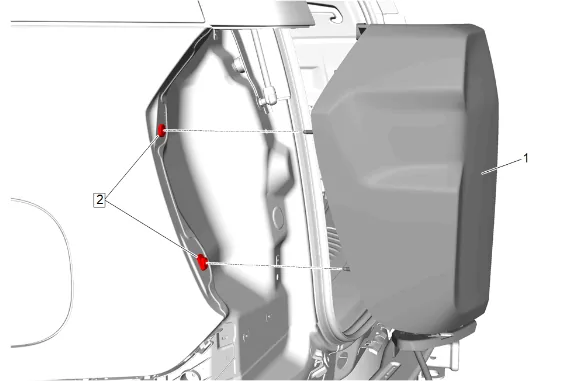

  1. Ensure the rear body structure lamp (1) is properly aligned with the tail lamp retainers (2).

  2. Rear Body Structure Stop Lamp (2) » Install

  1. Rear Body Structure Stop Lamp Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Secure the retaining tab.

  3. Connect the electrical connector.

  4. Rear Body Structure Stop Lamp Bolt (1) » Install and tighten [2x] — Fastener Specifications

  5. Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation

  1. Back Body Opening Side Lower Gutter (1) » Install
  1. Back Body Opening Side Center Gutter » Install
  2. Close the rear compartment lid.
