Drive Belt Accessory Components

Drive Belt Accessory Components — figure 1

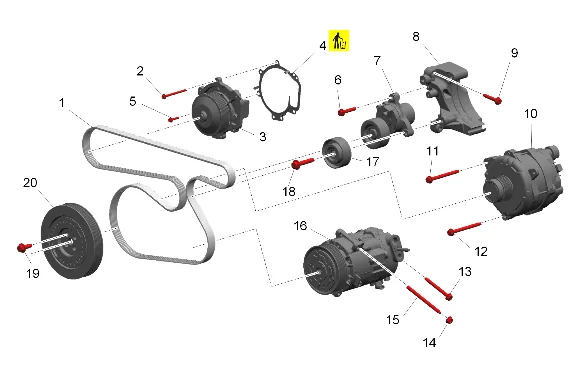

(1) Accessory Drive Primary Belt (2) Water Pump Bolt [2x] (3) Water Pump (4) Water Pump Gasket (5) Water Pump Bolt [4x] (6) Drive Belt Tensioner Bolt [2x] (7) Drive Belt Tensioner (8) Generator and Drive Belt Tensioner Bracket (9) Generator and Air Conditioning Compressor Bracket Bolt [4x] (10) Generator (11) Generator Bolt (12) Generator Bolt (13) Air Conditioning Compressor Bolt [2x] (14) Air Conditioning Compressor Nut (15) Air Conditioning Compressor Stud (16) Air Conditioning Compressor (17) Belt Idler Pulley (18) Bolt @ Belt Idler Pulley (19) Crankshaft Pulley Bolt [4x] (20) Crankshaft Pulley
