Propeller Shaft Oil Seal Sleeve Removal (2WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4738307 Single Use Fasteners and Components Propeller Shaft Oil Seal Sleeve Special Tools DT-22912-B Split Plate Bearing Puller DT-50802 Output Shaft Grease Can Installer GE-8433-1 Puller Bar Equivalent regional tools: Special Tools

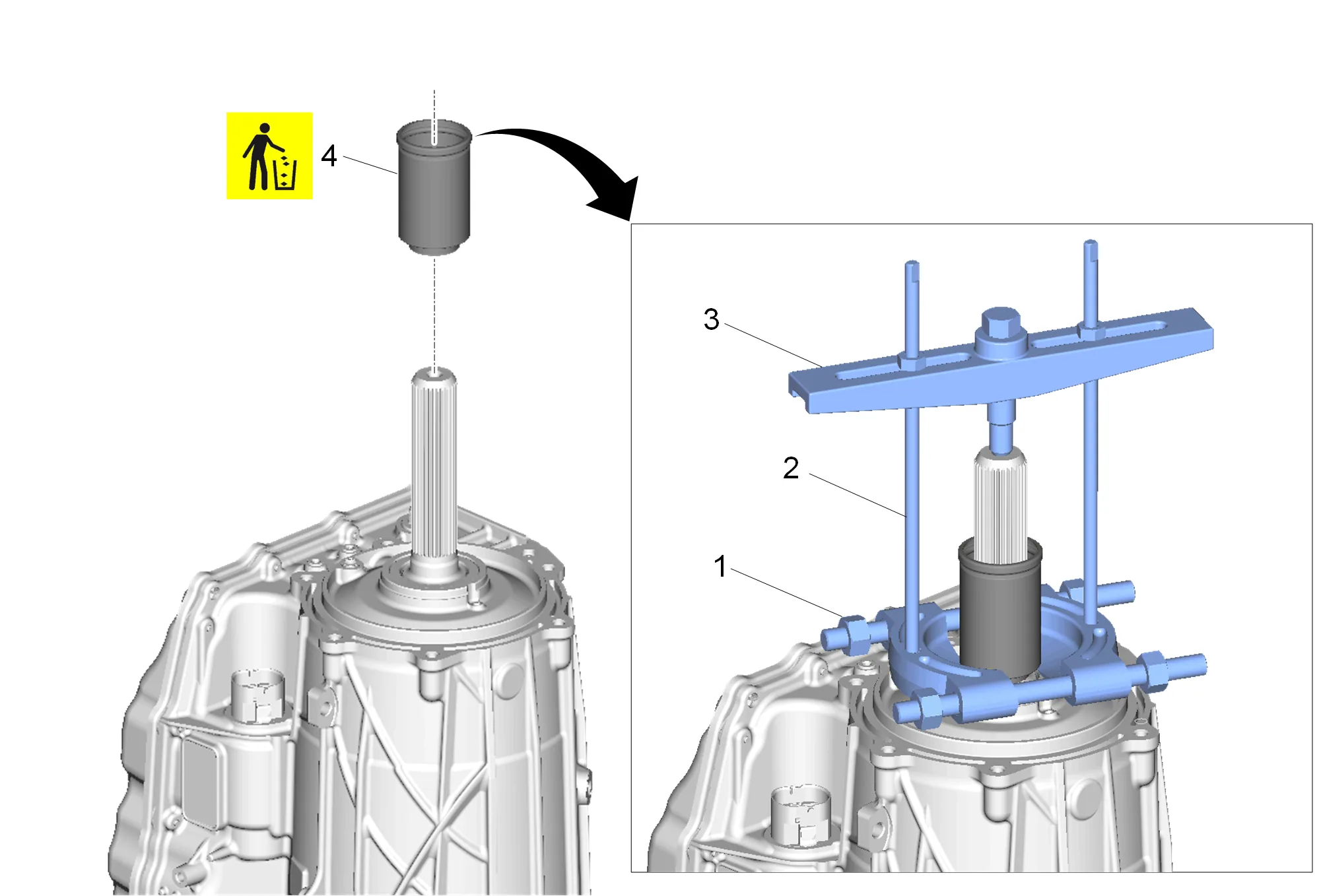

Propeller Shaft Oil Seal Sleeve Removal (2WD) — figure 1

Caution

Do not attempt to remove or install the propeller shaft oil seal sleeve by striking or hitting the sleeve. Transmission internal bearing damage could result.

1. Assemble and use DT-22912-B Split Plate Bearing Puller (1), the 3/8 x 24 in threaded rods from DT- 50802 Output Shaft Grease Can Installer(2), and the GE-8433-1 Puller Bar (3) to remove the Propeller Shaft Oil Seal Sleeve (4).
2. Propeller Shaft Oil Seal Sleeve (4) » Remove and DISCARD
