Rear Seat Belt Opening Bezel Replacement (Rear Seat)

Removal Procedure

Warning

Refer to SIR Warning.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

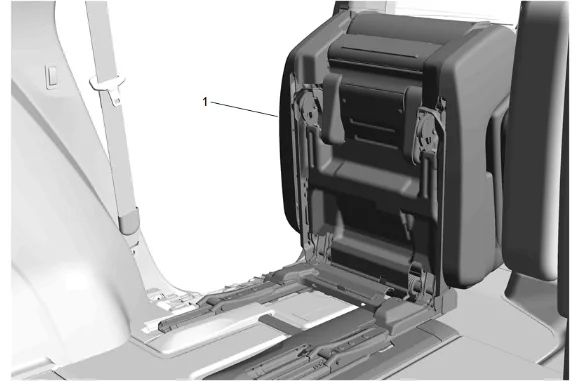

Rear Seat Belt Opening Bezel Replacement (Rear Seat) — figure 1

2. Place the rear seat (1) in the fold and tumble position.

Rear Seat Belt Opening Bezel Replacement (Rear Seat) — figure 2

3. Rear Seat Belt Anchor Plate Cover (1) » Reposition
4. Rear Seat Belt Anchor Plate Bolt (2) » Remove

Rear Seat Belt Opening Bezel Replacement (Rear Seat) — figure 3

5. Using a suitable plastic trim tool, release the retaining tabs.

Note

Feed the rear seat belt anchor plate and cover through the rear set belt opening bezel to remove.

6. Rear Seat Belt Opening Bezel (1) » Remove Installation Procedure

Note

Feed the rear seat belt anchor plate and cover through the rear set belt opening bezel to install.

1. Rear Seat Belt Opening Bezel (1) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Belt Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

3. Rear Seat Belt Anchor Plate Cover (1) » Install

4. Return the rear seat (1) to the original position.

5. Enable the SIR System. SIR Disabling and Enabling
