Internal Components

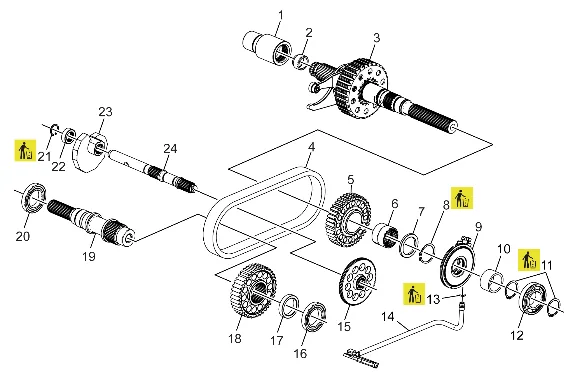

Internal Components — figure 1

(1) Transfer Case Input Shaft (2) Transfer Case Input Shaft Pilot Bearing (3) Transfer Case Rear Output Shaft Assembly (4) Transfer Case Front Output Shaft Drive Chain Assembly (5) Transfer Case Front Output Shaft Drive Sprocket (6) Transfer Case Front Output Shaft Drive Sprocket Bearing (7) Transfer Case Front Output Shaft Driven Sprocket Spacer - Rear (8) Transfer Case Front Output Shaft Drive Sprocket Retaining Ring (9) Transfer Case Oil Pump (10) Transfer Case Rear Output Shaft Bearing Spacer (11) Transfer Case Rear Output Shaft Rear Bearing Retaining Ring (12) Transfer Case Rear Output Shaft Rear Bearing (13) Transfer Case Oil Pump Suction Pipe Seal (14) Transfer Case Oil Pump Suction Pipe (15) Transfer Case Two/Four Wheel Drive Actuator Shaft Gear (16) Transfer Case Front Output Shaft Rear Bearing (17) Transfer Case Front Output Shaft Driven Sprocket Spacer (18) Transfer Case Front Output Shaft Driven Sprocket (19) Transfer Case Front Output Shaft (20) Transfer Case Front Output Shaft Front Bearing (21) Transfer Case Two/Four Wheel Drive Actuator Cam Retaining Ring (22) Transfer Case Two/Four Wheel Drive Actuator Cam Spacer (23) Transfer Case Two/Four Wheel Drive Actuator Cam (24) Transfer Case Control Actuator Shaft
