Radio Front Center Speaker Replacement

Removal Procedure

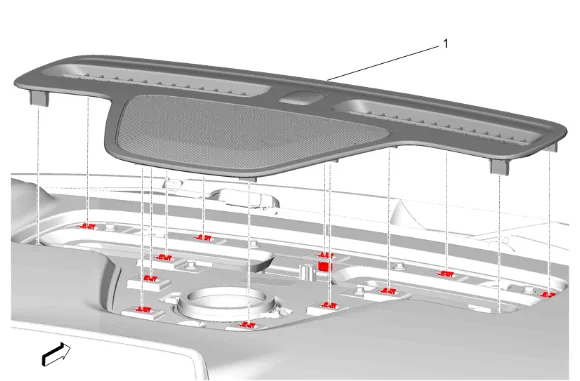

Radio Front Center Speaker Replacement — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Disconnect the electrical connector.
3. Instrument Panel Extension (1) » Remove

Radio Front Center Speaker Replacement — figure 2

4. Radio Front Center Speaker Bolt (1) » Remove [2x]

5. Radio Front Center Speaker (2) » Remove

6. Disconnect the electrical connector. Installation Procedure

7. Connect the electrical connector.

8. Radio Front Center Speaker (2) » Install

Caution

Refer to Fastener Caution.

3. Radio Front Center Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Connect the electrical connector.

5. Instrument Panel Extension (1) » Install
