Hood Insulator Replacement

Removal Procedure

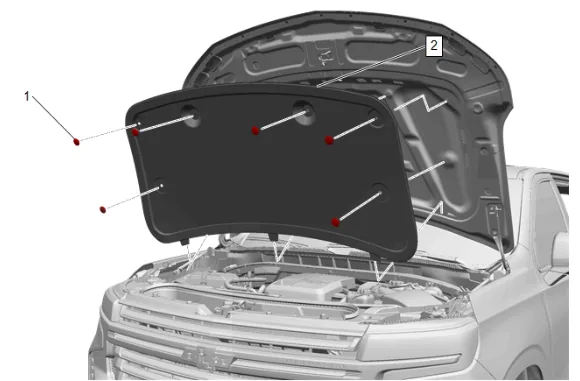

Hood Insulator Replacement — figure 1

1. Hood Insulator Retainer (1) » Remove [6x]
2. Release the 3 integral tabs at the bottom of the hood insulator.
3. Hood Insulator (2) » Remove Installation Procedure

Note

Ensure the three lower integral tabs are secure to the hood.

1. Hood Insulator (2) » Install
2. Hood Insulator Retainer (1) » Install [6x]
