Transfer Case Vent Hose Replacement

Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

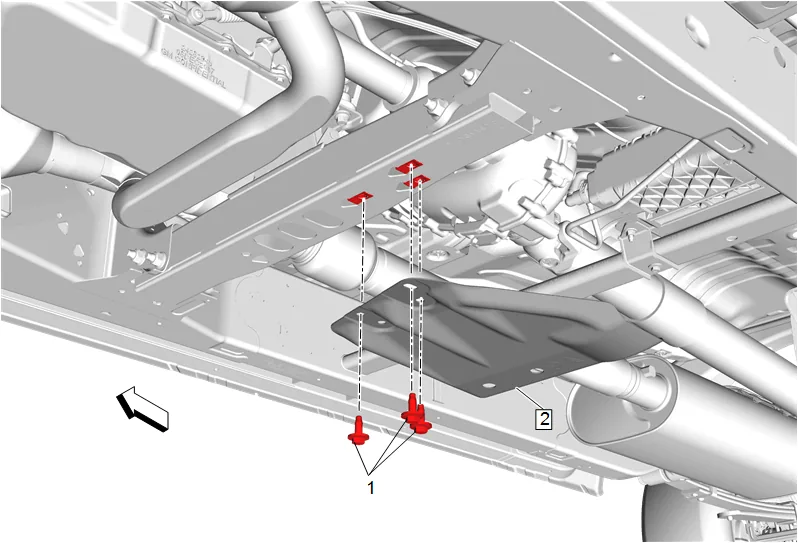

Transfer Case Vent Hose Replacement — figure 1

2. { If equipped } Transfer Case Skid Shield (2) » Remove — Transfer Case Skid Shield Replacement
3. Support the transmission with a suitable jack.

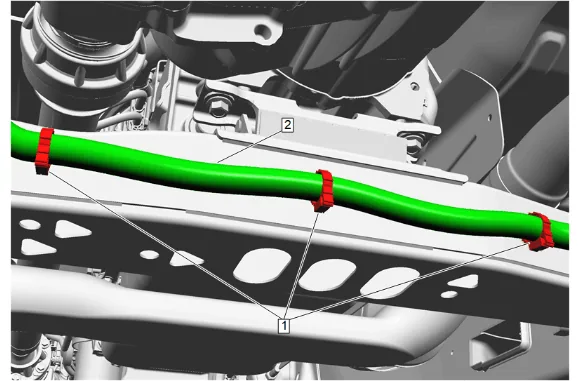

Transfer Case Vent Hose Replacement — figure 2

4. If equipped, remove the wiring harness (2) from the 3 wiring harness retainers (1) and reposition the wiring harness as necessary.

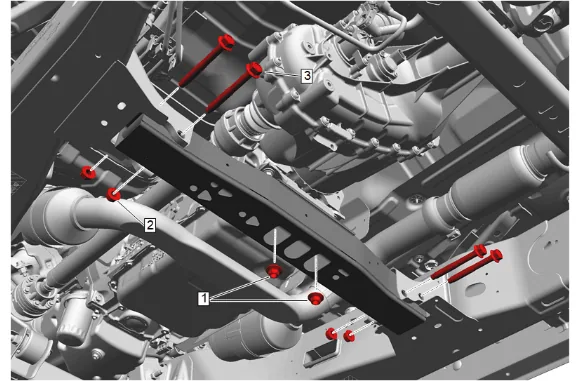

Transfer Case Vent Hose Replacement — figure 3

5. Transmission Mount Nut (1) » Remove [2X]
6. Transmission Support Crossmember Nut (2) » Remove [4x]
7. Transmission Support Crossmember Bolt (3) » Remove [4x]

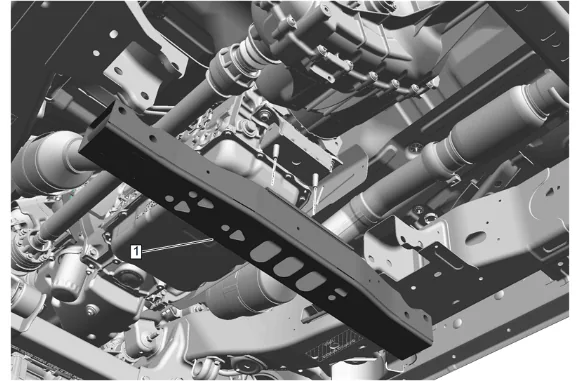

Transfer Case Vent Hose Replacement — figure 4

8. Transmission Support Crossmember (1) » Remove
9. Lower the transmission and transfer case assembly enough to gain access to the transfer case vent hose.

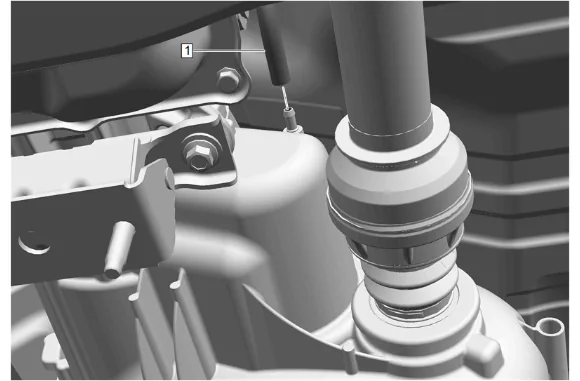

Transfer Case Vent Hose Replacement — figure 5

10. Transfer Case Vent Hose (1) » Disconnect

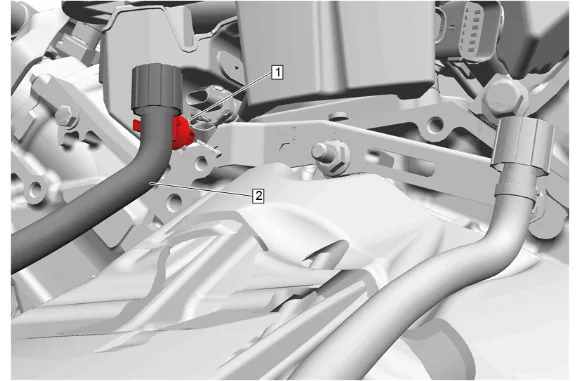

Transfer Case Vent Hose Replacement — figure 6

11. Remove the transfer case vent hose retainer (1).

12. Transfer Case Vent Hose (2) » Remove Installation Procedure

13. Transfer Case Vent Hose (2) » Install

14. Install the transfer case vent hose retainer (1).

15. Transfer Case Vent Hose (1) » Connect

16. Raise the transmission and transfer case assembly into place.

17. Transmission Support Crossmember (1) » Install

18. Transmission Support Crossmember Bolt (3) » Install [4x]

Caution

Refer to Fastener Caution

7. Transmission Support Crossmember Nut (2) » Install and tighten [4x] — Fastener Specifications

8. Transmission Mount Nut (1) » Install and tighten [2x] — Fastener Specifications

9. If equipped, position the wiring harness (2) as necessary then install the harness into the 3 wiring harness retainers (1).

10. Remove the transmission jack.

11. { If equipped } Transfer Case Skid Shield (2) » Install — Transfer Case Skid Shield Replacement

12. Lower the vehicle.
