Fuel Feed and Return Front Hose Bracket Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5589669 Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

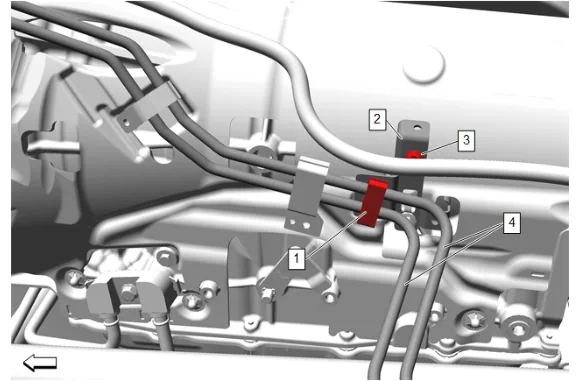

Fuel Feed and Return Front Hose Bracket Replacement — figure 1
Fuel Feed and Return Front Hose Bracket Replacement — figure 1
  1. Retainer (1) @ Fuel Feed and Return Front Hose Bracket (2) » Remove
  2. Retainer (3) @ Fuel Feed and Return Front Hose Bracket (2) » Remove
  3. Fuel Feed and Return Front Pipe (4) » Reposition away

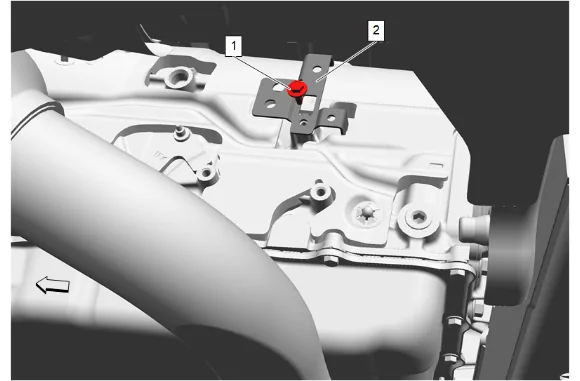

Fuel Feed and Return Front Hose Bracket Replacement — figure 2
Fuel Feed and Return Front Hose Bracket Replacement — figure 2

  1. Fuel Feed and Return Front Hose Bracket Bolt (1) » Remove

  2. Fuel Feed and Return Front Hose Bracket (2) » Remove Installation Procedure

  3. Fuel Feed and Return Front Hose Bracket (2) » Install

  1. Fuel Feed and Return Front Hose Bracket Bolt (1) » Install and tighten — Fastener Specifications

  2. Fuel Feed and Return Front Pipe (3) » Install

  3. Retainer (3) @ Fuel Feed and Return Front Hose Bracket (2) » Install

  4. Retainer (1) @ Fuel Feed and Return Front Hose Bracket (2) » Install

  5. Lower the vehicle.
