Rear Seat Heater Control Module Bracket Replacement - Left Side

Rear Seat Heater Control Module Bracket Replacement - Left Side Removal Procedure

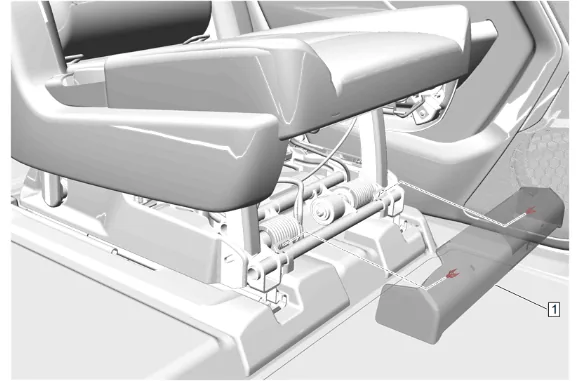

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Rear Seat Riser Finish Cover (1) » Remove

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clip.
4. Rear Seat Riser Finish Cover (1) » Remove [2x]

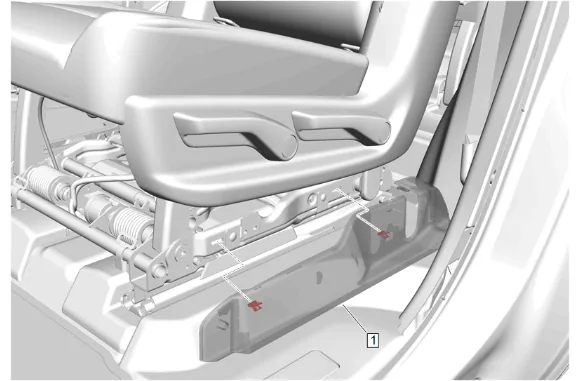

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Using a suitable plastic trim tool, release the retaining tabs.
7. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove

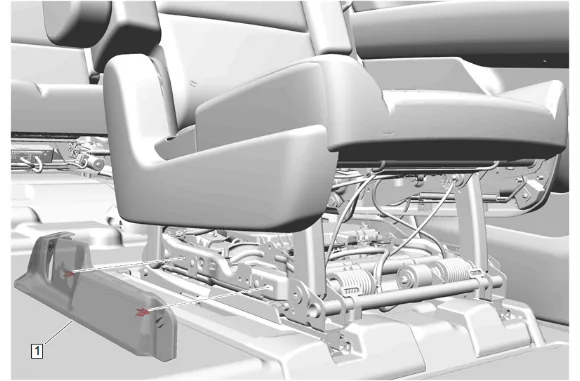

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 4

8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Using a suitable plastic trim tool, release the retaining tabs.
10. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 5

11. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
12. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).

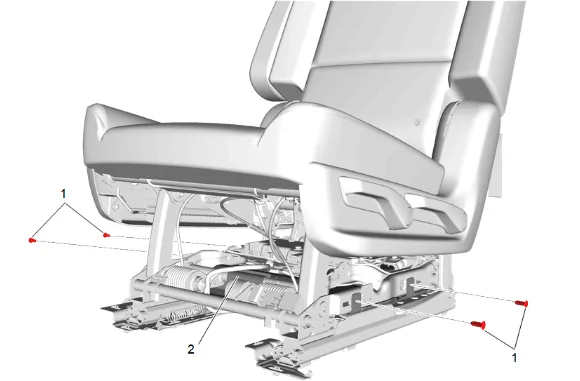

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 6

13. Release the remaining J-channel retainers on the rear seat cushion trim panel (2).
14. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [4x]

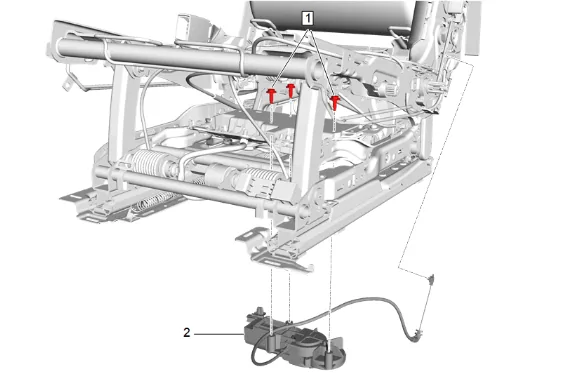

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 7

15. Rear Seat Riser Bolt (1) » Remove [3x]
16. Folding Rear Seat Back Actuator (2) » Reposition

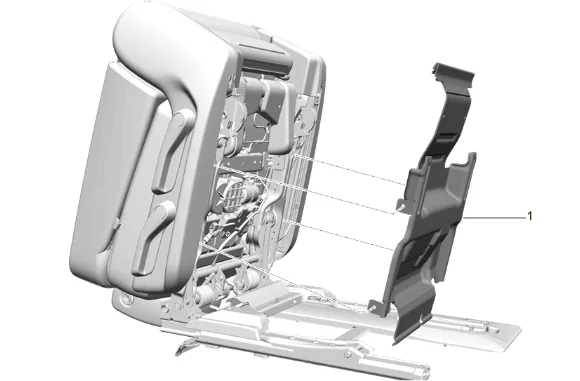

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 8

17. Place the rear seat in the fold and tumble position.
18. Rear Seat Cushion Trim Panel (1) » Remove

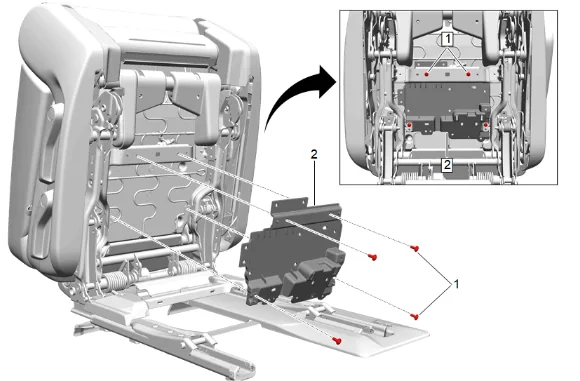

Rear Seat Heater Control Module Bracket Replacement - Left Side — figure 9

19. Disconnect the wiring harness retainers and reposition the harness as necessary.

20. Front Seat Bolt (1) » Remove [4x]

21. Rear Seat Heater Control Module Bracket (2) » Remove Installation Procedure

22. Rear Seat Heater Control Module Bracket (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Position the wiring harness and connect the harness retainers.

4. Rear Seat Cushion Trim Panel (1) » Install

5. Return the rear seat to the original position.

6. Folding Rear Seat Back Actuator (2) » Install

7. Rear Seat Riser Bolt (1) » Install and tighten [3x] — Fastener Specifications

8. Rear Seat Back Opening Finish Cover Retainer (1) » Install [4x]

9. Secure the J-channel retainers on the rear seat cushion trim panel (2).

10. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel  (2).

11. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

12. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

13. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

14. Rear Seat Riser Finish Cover (1) » Install [2x]

15. Rear Seat Riser Finish Cover (1) » Install
