Case Assembly – Control Valve Upper Body Assembly Side

Case Assembly – Control Valve Upper Body Assembly Side — figure 1
Case Assembly – Control Valve Upper Body Assembly Side — figure 1

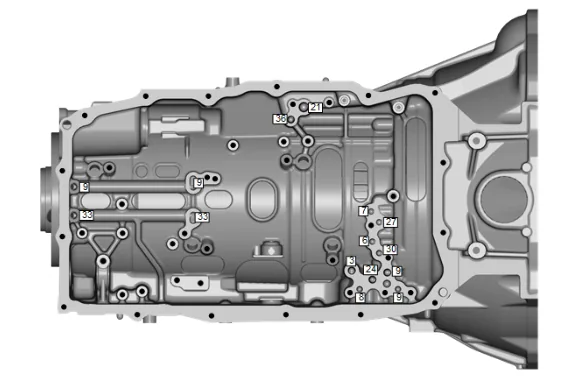

(3) Secondary Line (6) TCC Release (7) TCC Apply (8) Cooler Feed (9) Lube (21) 1-2-3-4-5-6-Reverse Clutch (24) 1-2-8-9-10-Reverse Clutch (27) 2-3-4-5-7-9-10 Clutch (30) 1-2-3-4-6-7-8-10-Reverse Clutch (33) 1-3-5-6-7-8-9 Clutch (36) 4-5-6-7-8-9-10-Reverse Clutch
