Fastener Specifications (2)
Fastener Specifications Table 1: Body Lock Pillar Upper Trim Panel Table 2: Body Rear Corner Upper Garnish Molding, Body Side Rear Window Garnish Molding Table 3: Cargo Tie Down Loop, Convenience Net Table 4: Center Pillar Upper Trim Panel, Center Pillar Assist Handle Table 5: Coat Hook Table 6: Front Side Door Accessory Switch Plate Table 7: Front Side Door Pull Handle Bracket Table 8: Front Side Door Trim Table 9: Liftgate Lower Trim Finish Panel Table 10: Quarter Trim Panel Cover Table 11: Rear Compartment Floor Stowage Trim Compartment Table 12: Rear Side Door Accessory Switch Mount Plate, Rear Side Door Trim Table 13: Rear Side Door Pull Handle Bracket Table 14: Roof Rail Assist Handle, Sunshade, Sunshade Support Table 15: Windshield Garnish Molding Table 16: Windshield Pillar Assist Handle
Body Lock Pillar Upper Trim Panel
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure | ||
|---|---|---|---|---|---|---|---|
| e nent d Metric (English) | |||||||
| © | 2023 Gen | eral Motor | s. All rights reserved. |
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Quarter Window Trim Finish Panel Bolt | — | — | 2.5 Y (22 lb in) | Body Lock Pillar Upper Trim Panel Replacement |

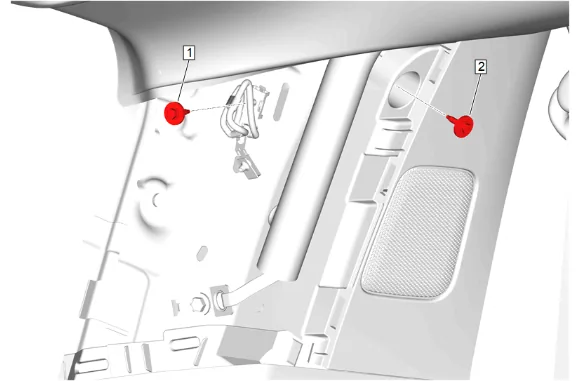

Body Rear Corner Upper Garnish Molding, Body Side Rear Window Garnish Molding
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Body Rear Corner Upper Garnish Molding Bolt | — | — | 2.5 Y (22 lb in) | Body Rear Corner Upper Garnish Molding Replacement |
| 2 | Body Side Rear Window Garnish Molding Bolt | — | — | 2.5 Y (22 lb in) | Body Side Rear Window Garnish Molding Replacement |

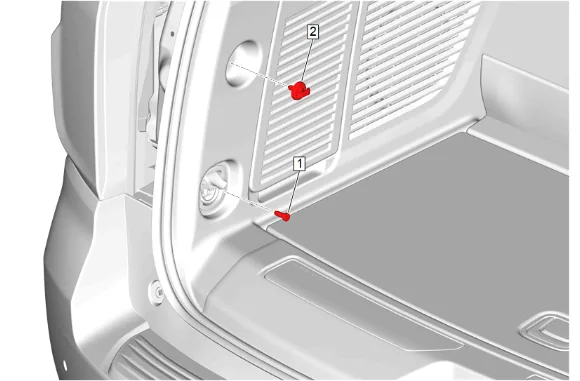

Cargo Tie Down Loop, Convenience Net
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Cargo Tie Down Loop Bolt | — | — | 20 Y (15 lb ft) | Cargo Tie Down Loop Replacement |
| 2 | Convenience Net Retainer | — | — | 2 Y (18 lb in) | Convenience Net Retainer Replacement |

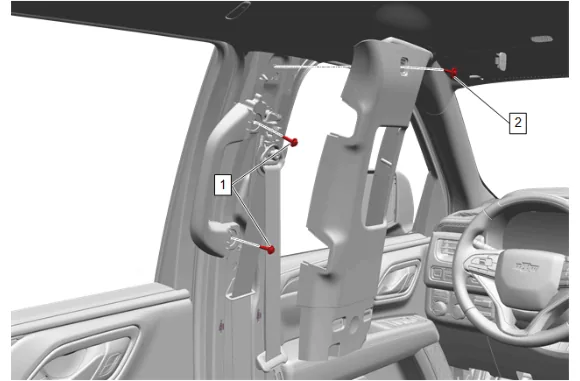

Center Pillar Upper Trim Panel, Center Pillar Assist Handle
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Center Pillar Assist Handle Bolt [2x] | — | — | 9 Y (80 lb in) | Center Pillar Assist Handle Replacement |
| 2 | Center Pillar Upper Garnish Molding Bolt | — | — | 2.5 Y (22 lb in) | Center Pillar Upper Trim Panel Replacement |
Coat Hook
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Coat Hook Bolt | — | — | 6 Y (53 lb in) | Coat Hook Replacement |

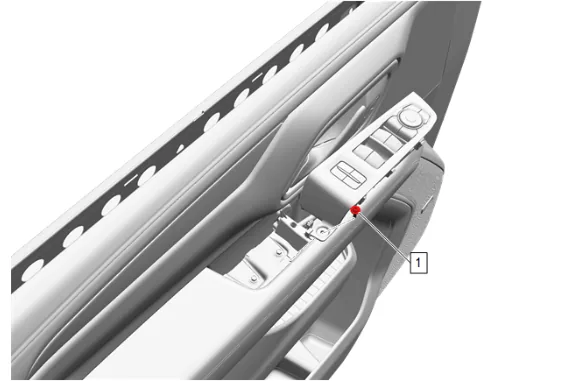

Front Side Door Accessory Switch Plate
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Front Side Door Trim Bolt | — | — | 2.5 Y (22 lb in) | Front Side Door Accessory Switch Mount Plate Replacement - Driver Side |

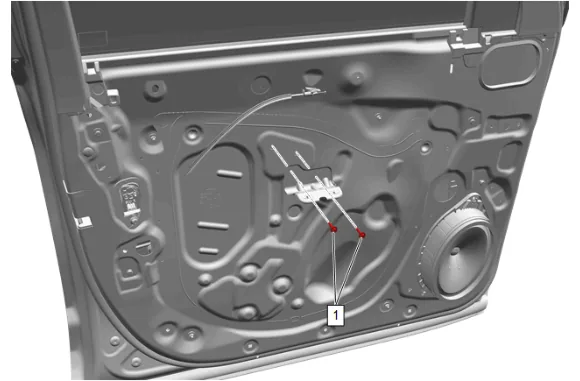

Front Side Door Pull Handle Bracket
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Front Side Door Armrest Bracket Bolt [2x] | — | — | 2.5 Y (22 lb in) | Front Side Door Pull Handle Bracket Replacement |

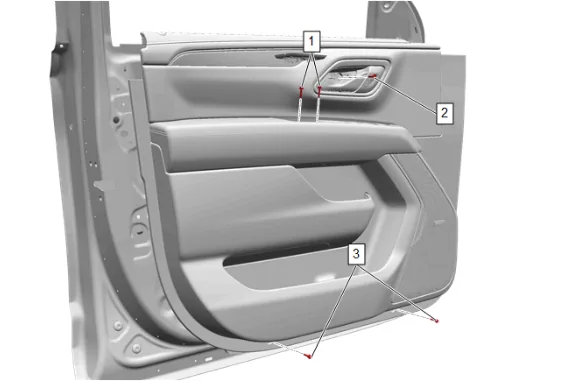

Front Side Door Trim
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Front Side Door Armrest Pull Cup Bolt [2x] | — | — | 2.5 Y (22 lb in) | Front Side Door Trim Removal and Installation |
| 2 | Front Side Door Inside Handle Bolt | — | — | 2.5 Y (22 lb in) | Front Side Door Trim Removal and Installation |
| 3 | Front Side Door Trim Panel Bolt [2x] | — | — | 2.5 Y (22 lb in) | Front Side Door Trim Removal and Installation |
Liftgate Lower Trim Finish Panel
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Liftgate Lower Trim Finish Panel Bolt | — | — | 2.5 Y (22 lb in) | Liftgate Lower Trim Finish Panel Replacement |
Quarter Trim Panel Cover
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Quarter Upper Trim Panel Bolt | — | — | 2.5 Y (22 lb in) | Quarter Trim Panel Cover Replacement |

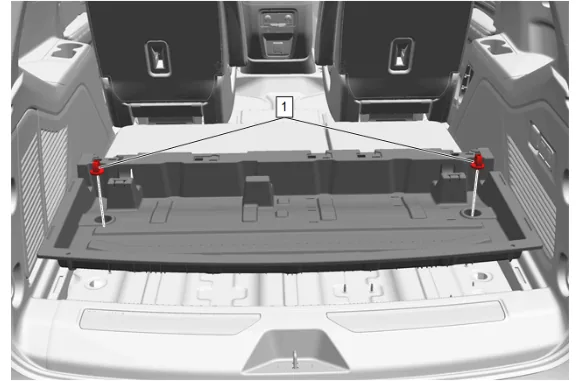

Rear Compartment Floor Stowage Trim Compartment
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Rear Compartment Floor Stowage Compartment Divider Retainer [2x] — SWB | — | — | 2.5 Y (22 lb in) | Rear Compartment Floor Stowage Trim Compartment Replacement |
| Rear Compartment Floor Stowage Compartment Divider Retainer [4x] — LWB |

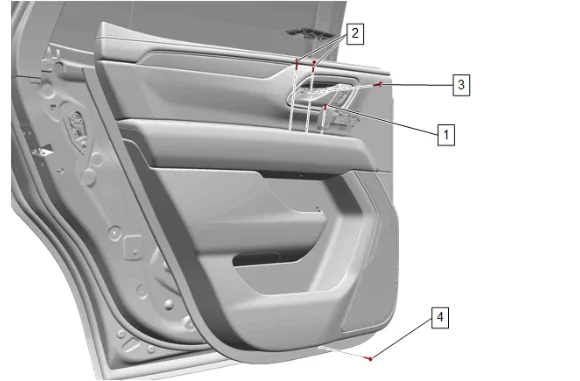

Rear Side Door Accessory Switch Mount Plate, Rear Side Door Trim
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Rear Side Door Trim Panel Bolt | — | — | 2.5 Y (22 lb in) | Rear Side Door Accessory Switch Mount Plate Replacement |
| 2 | Rear Side Door Armrest Pull Cup Bolt [2x] | — | — | 2.5 Y (22 lb in) | Rear Side Door Trim Removal and Installation |
| 3 | Rear Side Door Inside Handle Bolt | — | — | 2.5 Y (22 lb in) | Rear Side Door Trim Removal and Installation |
| 4 | Rear Side Door Trim Panel Bolt | — | — | 2.5 Y (22 lb in) | Rear Side Door Trim Removal and Installation |
Rear Side Door Pull Handle Bracket
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Rear Side Door Armrest Bolt [2x] | — | — | 2.5 Y (22 lb in) | Auxiliary Rear Side Door Water Deflector Replacement |

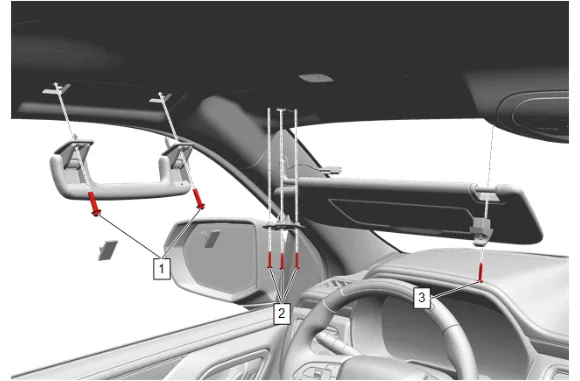

Roof Rail Assist Handle, Sunshade, Sunshade Support
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Roof Rail Assist Handle Bolt [2x] | — | — | 9 Y (80 lb in) | Roof Rail Assist Handle Replacement |
| 2 | Sunshade Bolt [3x] | — | — | 2.5 Y (22 lb in) | Sunshade Replacement - Left Side |
| Sunshade Replacement - Right Side | |||||
| 3 | Sunshade Support Bolt | — | — | 2 Y (18 lb in) | Sunshade Support Replacement |

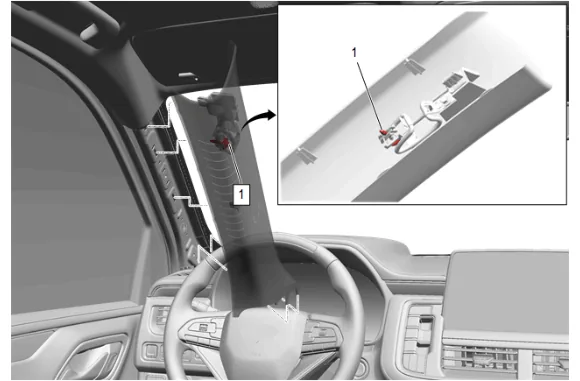

Windshield Garnish Molding
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Windshield Garnish Molding Bolt | — | — | 2.5 Y (22 lb in) | Windshield Garnish Molding Replacement - Left Side |
| Windshield Garnish Molding Replacement - Right Side |

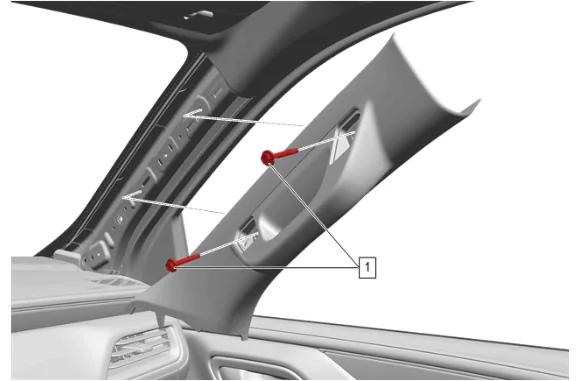

Windshield Pillar Assist Handle
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Windshield Pillar Assist Handle Bolt [2x] | — | — | 9 Y (80 lb in) | Windshield Garnish Molding Replacement - Right Side |
