Evaporative Emission Canister Vent Solenoid Valve Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5542957 Evaporative Emission Canister Vent Solenoid Valve Replacement Single Use Fasteners and Components Fuel Tank Filler Vent Hose Strap [3x]

Raise and support the vehicle. Lifting and Jacking the Vehicle

Evaporative Emission Canister Vent Solenoid Valve Replacement — figure 1

Evaporative Emission Pipe Retainer (1) » Remove
Fuel Tank Filler Vent Hose Strap (2) » Remove and DISCARD

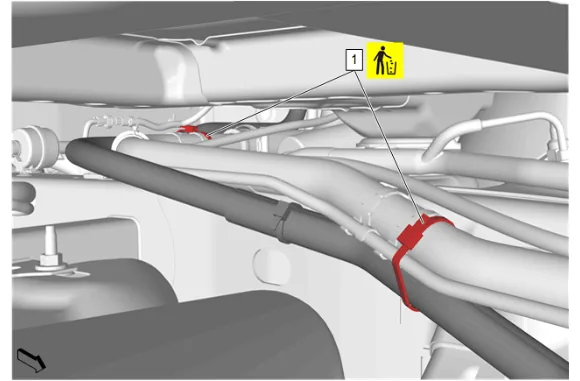

Evaporative Emission Canister Vent Solenoid Valve Replacement — figure 2

Fuel Tank Filler Vent Hose Strap (1) » Remove and DISCARD [2x]

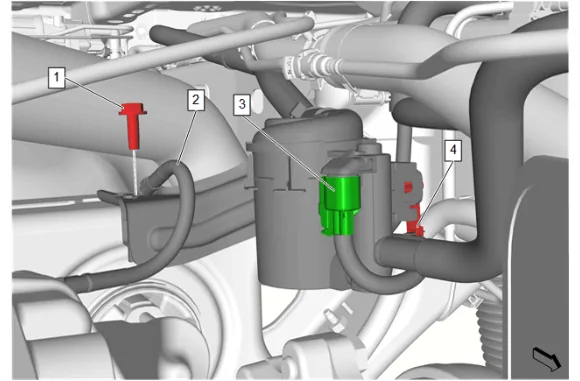

Evaporative Emission Canister Vent Solenoid Valve Replacement — figure 3

Evaporative Emission Canister Vent Solenoid Valve Bracket Bolt (1) » Remove
Differential Carrier Ground Cable (2) » Reposition
Disconnect the electrical connector. (3)
Wiring Harness Retainer (4) » Disengage

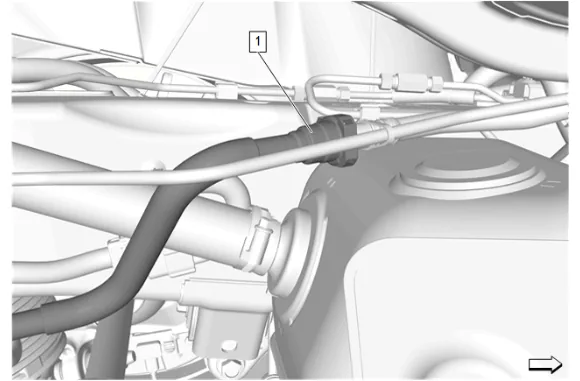

Evaporative Emission Canister Vent Solenoid Valve Replacement — figure 4

Evaporative Emission Canister Vent Solenoid Valve (1) » Disconnect — Plastic Collar Quick Connect Fitting Service

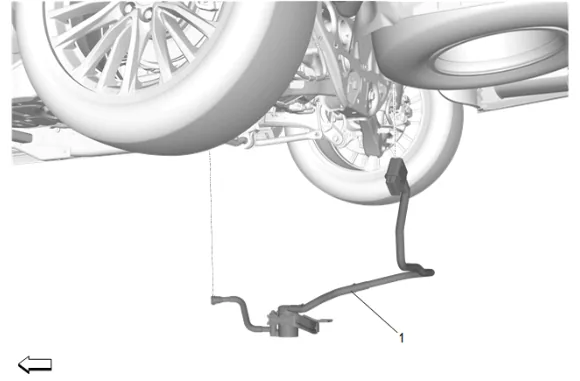

Evaporative Emission Canister Vent Solenoid Valve Replacement — figure 5

Evaporative Emission Canister Vent Solenoid Valve (1) » Remove Installation Procedure
Evaporative Emission Canister Vent Solenoid Valve (1) » Install
Evaporative Emission Canister Vent Solenoid Valve (1) » Connect — Plastic Collar Quick Connect Fitting Service
Wiring Harness Retainer (4) » Engage
Connect the electrical connector. (3)
Differential Carrier Ground Cable (2) » Install

Evaporative Emission Canister Vent Solenoid Valve Bracket Bolt (1) » Install and tighten — Fastener Specifications
Fuel Tank Filler Vent Hose Strap (1) » Install NEW [2x]
Fuel Tank Filler Vent Hose Strap (2) » Install NEW
Evaporative Emission Pipe Retainer (1) » Install
Lower the vehicle.
