Front Side Door Map Pocket Illumination Lamp Replacement

Front Side Door Map Pocket Illumination Lamp Replacement Removal Procedure

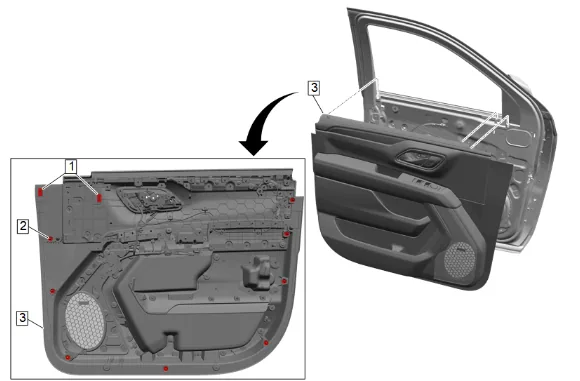

Front Side Door Map Pocket Illumination Lamp Replacement — figure 1

1. Front Side Door Trim (3) » Remove — Front Side Door Trim Removal and Installation

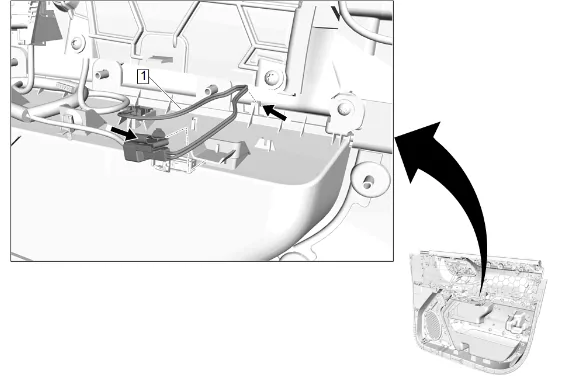

Front Side Door Map Pocket Illumination Lamp Replacement — figure 2

2. Reposition the trim panel insulator as necessary.
3. Disconnect the electrical connector.

Note

Observe the mounting and location of the wiring harness to ensure proper reinstallation.

4. Release the front side door map pocket illumination lamp wiring harness (1) from the front side door trim.

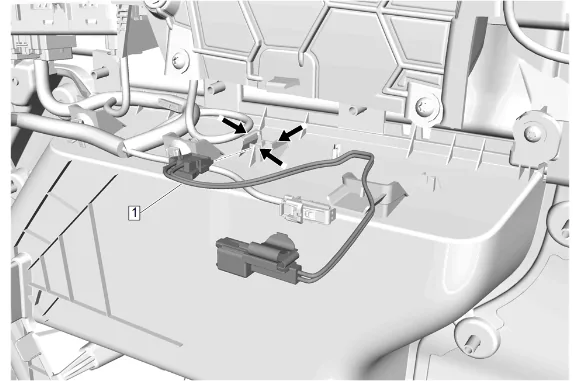

Front Side Door Map Pocket Illumination Lamp Replacement — figure 3

5. Release the retaining tabs.

6. Front Side Door Map Pocket Illumination Lamp (1) » Remove Installation Procedure

7. Front Side Door Map Pocket Illumination Lamp (1) » Install

8. Ensure the retaining tabs have fully secured.

9. Secure the front side door map pocket illumination lamp wiring harness (1) to the front side door trim.

10. Connect the electrical connector.

11. Install the trim panel insulator.

12. Front Side Door Trim (3) » Install — Front Side Door Trim Removal and Installation
