Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side Removal Procedure

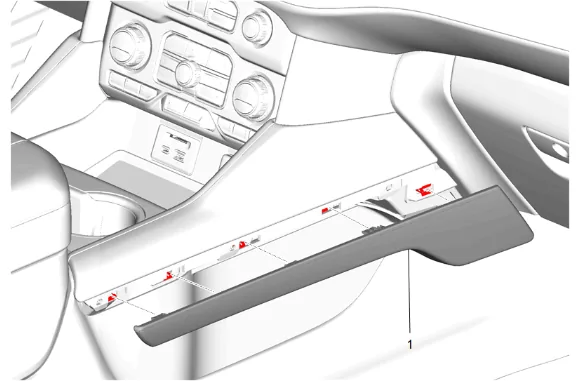

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

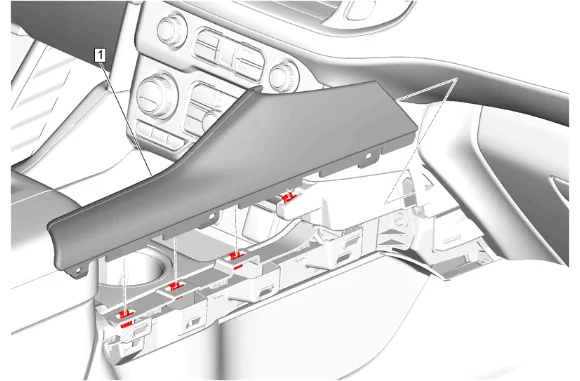

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side — figure 5

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side — figure 6

11. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

14. Instrument Panel Trim Pad (2) » Remove

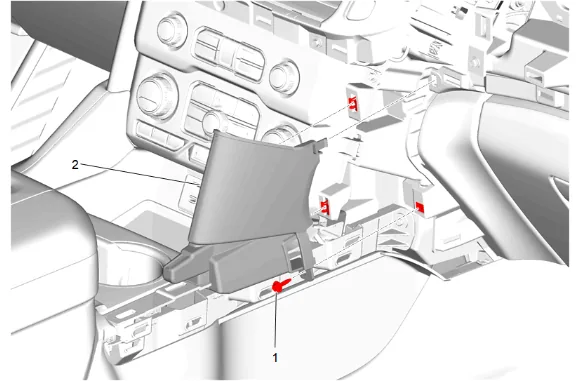

Instrument Panel Lower Center Trim Plate Applique Replacement - Right Side — figure 7

15. Instrument Panel Lower Trim Panel Bolt (1) » Remove

16. Using a flat-bladed plastic trim tool, release the retaining clips.

17. Instrument Panel Lower Center Trim Plate Applique (2) » Remove Installation Procedure

18. Instrument Panel Lower Center Trim Plate Applique (2) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

3. Connect the electrical connector.

4. Instrument Panel Trim Pad (2) » Install

5. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

6. Instrument Panel Center Trim Plate Applique (1) » Install

7. Instrument Panel Trim Plate Applique (1) » Install

8. Instrument Panel Fuse Block Access Hole Cover (1) » Install

9. Front Floor Console Applique (1) » Install

10. Front Floor Console Lower Applique (1) » Install
