Special Tools

Note

Key Fob Information Screen Layout. VIN #: 12345678 Data: NN EE PP SS Part #: 12345678

Note

Key data line is in HEX NN: UID Number/Key Number EE: Total Number of Keys Ever Erased PP: Total Number of Keys Ever Programmed SS: Total Number of Keys Currently Programmed

Note

It is important to ensure the EL 52545 is up to date with the latest software available.

Illustration	Tool Number/ Description

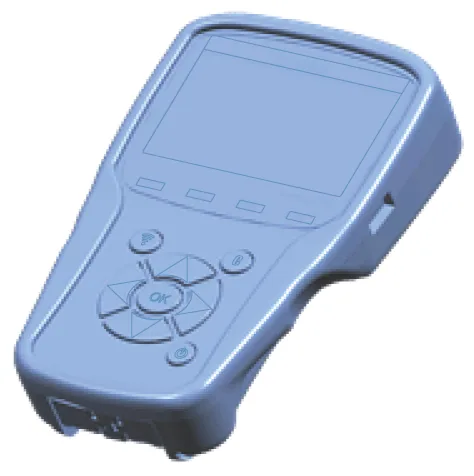

	EL 52545 Tire Pressure Monitor Sensor and RF Diagnostic Tool

Special Tools — figure 1
