Tahoe / Yukon Service Manual

Rear Side Door Rear Auxiliary Weatherstrip Replacement (short wheel base)

Rear Side Door Rear Auxiliary Weatherstrip Replacement (short wheel base) Removal Procedure

  1. Open the rear door.

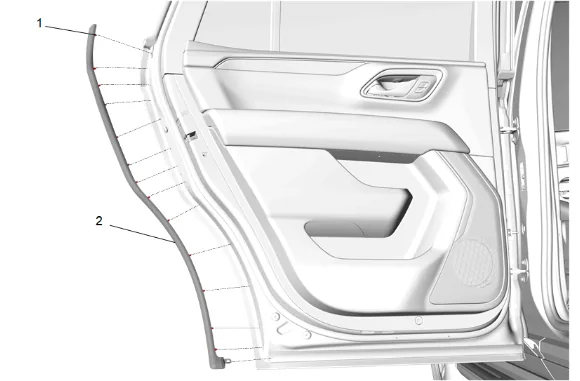

Rear Side Door Rear Auxiliary Weatherstrip Replacement (short wheel base) — figure 1
Rear Side Door Rear Auxiliary Weatherstrip Replacement (short wheel base) — figure 1

  1. Rear Side Door Rear Auxiliary Weatherstrip Retainers (1) » Release [14x]

  2. Rear Side Door Rear Auxiliary Weatherstrip (2) » Remove Installation Procedure

  3. Rear Side Door Rear Auxiliary Weatherstrip (2) » Install

  4. Rear Side Door Rear Auxiliary Weatherstrip Retainers (1) » Install [14x]

  5. Close the rear door.
