Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87)

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) Single Use Fasteners and Components Air Conditioning Compressor and Condenser Hose Seal - Large Air Conditioning Compressor and Condenser Hose Seal - Small [2x] Removal Procedure

1. Recover the refrigerant. Refrigerant Recovery and Recharging
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

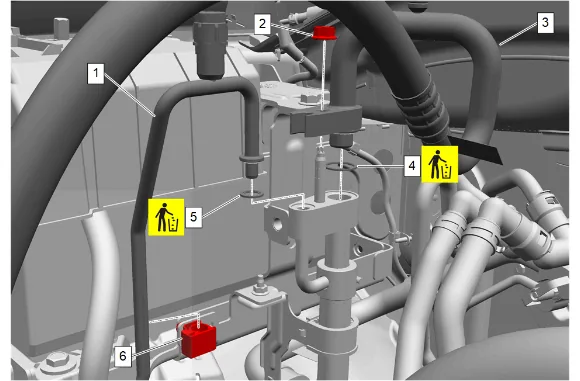

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 1

3. Air Conditioning Compressor and Condenser Hose Nut (2) @ Air Conditioning Refrigerant Heat Exchanger » Remove
4. Air Conditioning Compressor and Condenser Hose (3) @ Air Conditioning Refrigerant Heat Exchanger » Remove
5. Air Conditioning Compressor and Condenser Hose Seal (4) » Remove and DISCARD
6. Air Conditioning Condenser and Evaporator Hose Clip (6) » Remove
7. Air Conditioning Condenser and Evaporator Hose (1) » Remove
8. Air Conditioning Condenser and Evaporator Hose Seal (5) » Remove and DISCARD
9. Raise and support the vehicle. Lifting and Jacking the Vehicle
10. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

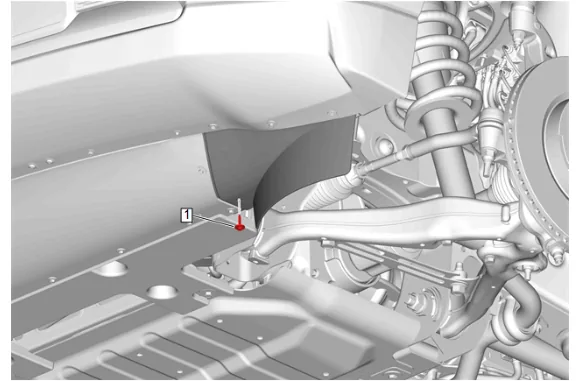

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 2

Note

Left side shown, right side similar.

11. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Remove

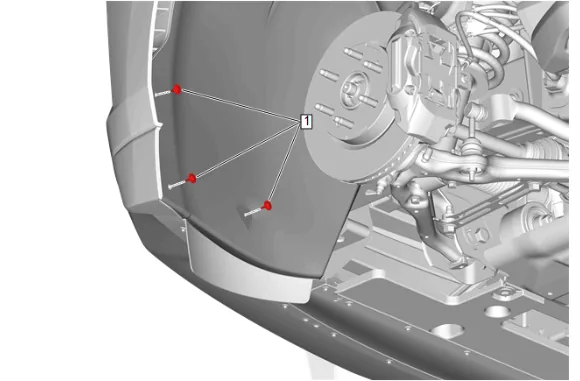

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 3

Note

Quantity of fasteners may vary based on option content. Left side shown, right side similar.

12. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

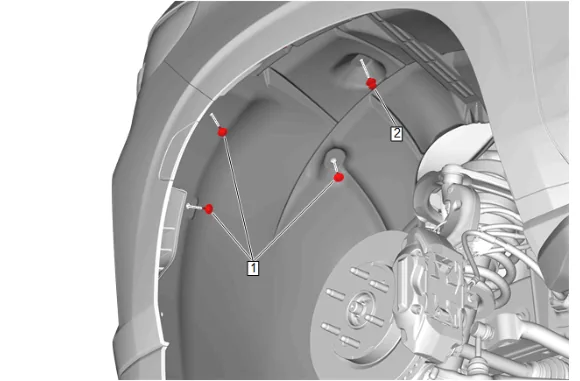

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 4

Note

Quantity of fasteners may vary based on option content. Left side shown, right side similar.

13. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
14. Front Wheelhouse Liner Retainer - Right Side (2) » Remove

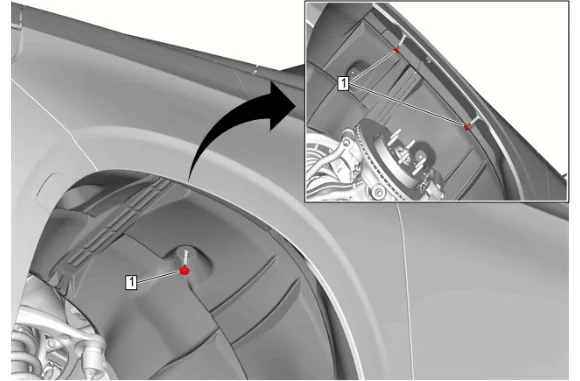

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 5

Note

Left side shown, right side similar.

15. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

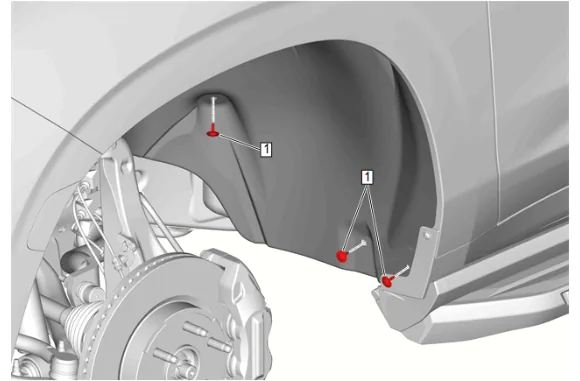

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 6

Note

Left side shown, right side similar.

16. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

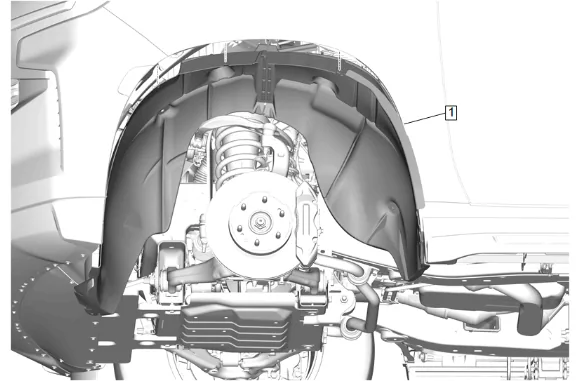

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 7

17. Front Wheelhouse Liner - Right Side (1) » Remove

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 8

18. Radiator Air Side Baffle - Right Side (1) » Reposition away

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 9

19. Air Conditioning Condenser and Evaporator Hose Nut (1) » Remove

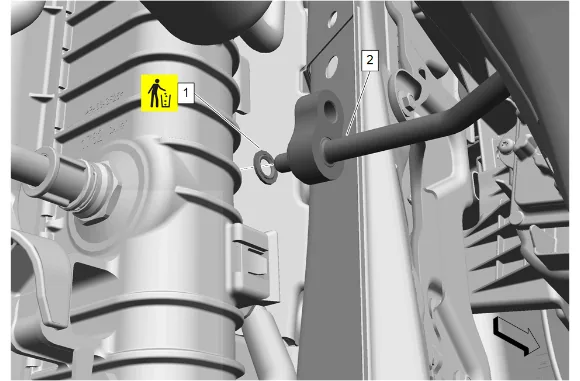

Air Conditioning Condenser and Evaporator Hose Replacement (L84, L87) — figure 10

Note

Some components not shown for graphic clarity.

20. Air Conditioning Condenser and Evaporator Hose (2) » Remove
21. Air Conditioning Condenser and Evaporator Hose Seal (1) » Remove and DISCARD
22. Remove the air conditioning condenser and evaporator hose from the vehicle. Installation Procedure

Note

Some components not shown for graphic clarity.

Caution

Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution.

1. Air Conditioning Condenser and Evaporator Hose Seal (1) » Install
2. Air Conditioning Condenser and Evaporator Hose (2) » Install

Caution

Refer to Fastener Caution.

3. Air Conditioning Condenser and Evaporator Hose Nut (1) » Install and tighten — Fastener Specifications

4. Radiator Air Side Baffle - Right Side (1) » Install

Note

Left side shown, right side similar.

5. Front Wheelhouse Liner - Right Side (1) » Install

Note

Left side shown, right side similar.

6. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

7. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content. Left side shown, right side similar.

8. Front Wheelhouse Liner Retainer - Right Side (2) » Install
9. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content. Left side shown, right side similar.

10. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

11. { If equipped } - Right Side Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

12. Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation

13. Remove the support and lower the vehicle.

14. Air Conditioning Condenser and Evaporator Hose Seal (5) » Install NEW

15. Air Conditioning Condenser and Evaporator Hose (1) » Install

16. Air Conditioning Condenser and Evaporator Hose Clip (6) » Install

17. Air Conditioning Compressor and Condenser Hose Seal (4) » Install NEW

18. Air Conditioning Compressor and Condenser Hose (3) @ Air Conditioning Refrigerant Heat Exchanger » Install

19. Air Conditioning Compressor and Condenser Hose Nut (2) @ Air Conditioning Refrigerant Heat Exchanger » Install and tighten — Fastener Specifications

20. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

21. Recharge the refrigerant. Refrigerant Recovery and Recharging

22. Inspect for refrigerant leaks.
