3rd Row Seat Back Panel Replacement (60 Percent)

Removal Procedure

3rd Row Seat Back Panel Replacement (60 Percent) — figure 1

1. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

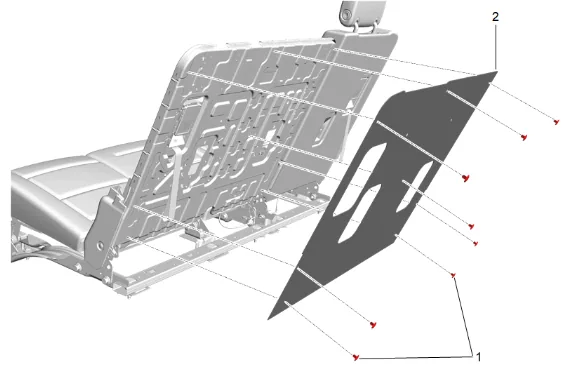

3rd Row Seat Back Panel Replacement (60 Percent) — figure 2

2. Using a suitable trim tool, release the retainers.

3. Rear Seat Back Cover Retainer (1) » Remove [8x]

4. 3rd Row Seat Back Panel (2) » Remove Installation Procedure

5. 3rd Row Seat Back Panel (2) » Install

6. Rear Seat Back Cover Retainer (1) » Install [8x]

7. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation
