Rear Seat Back Panel Replacement (40 Percent, Bucket)

Removal Procedure

Rear Seat Back Panel Replacement (40 Percent, Bucket) — figure 1

1. Reposition the seat as necessary.
2. Using a suitable plastic trim tool, release the two rear seat anchor plate bezel plastic retainers.
3. Rear Seat Anchor Plate Bezel (1) » Remove

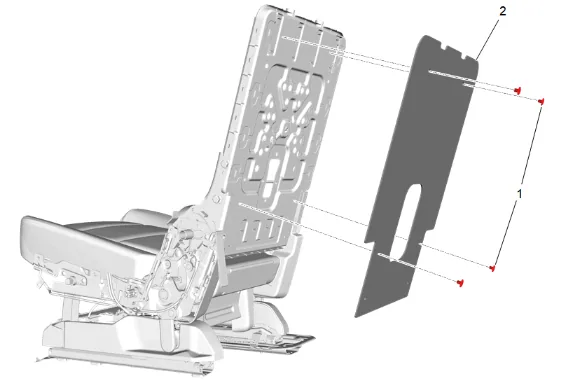

Rear Seat Back Panel Replacement (40 Percent, Bucket) — figure 2

Note

Some components not shown for graphic clarity.

4. Unzip the left and right rear seat back cover zippers.
5. Reposition the rear seat back cover, pad, J-channel retainers, and retainers as necessary.
6. Using a suitable trim tool, release the retainers.
7. Rear Seat Back Cover Retainer (1) » Remove [4x]
8. Rear Seat Back Panel (2) » Remove Installation Procedure

Note

Some components not shown for graphic clarity.

1. Rear Seat Back Panel (2) » Install

2. Rear Seat Back Cover Retainer (1) » Install [4x]

3. Position the rear seat back cover, pad, J-channel retainers, and retainers to the original location.

4. Zip the left and right rear seat back cover zippers.

5. Rear Seat Anchor Plate Bezel (1) » Install

6. Return the seat to its original position.
