3rd Row Seat Riser Replacement (Manual)

Removal Procedure

3rd Row Seat Riser Replacement (Manual) — figure 1

1. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

3rd Row Seat Riser Replacement (Manual) — figure 2

2. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

3rd Row Seat Riser Replacement (Manual) — figure 3

3. 3rd Row Seat Cushion Cover and Pad (1) » Remove — 3rd Row Seat Cushion Cover and Pad Removal and Installation

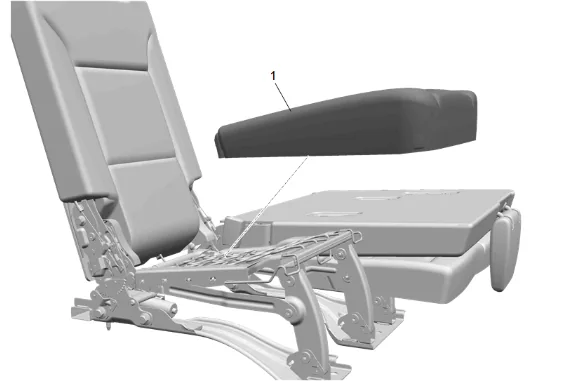

3rd Row Seat Riser Replacement (Manual) — figure 4

4. 3rd Row Seat Cushion Cover and Pad (1) » Remove — 3rd Row Seat Cushion Cover and Pad Removal and Installation

3rd Row Seat Riser Replacement (Manual) — figure 5

5. 3rd Row Seat Nut (1) » Remove

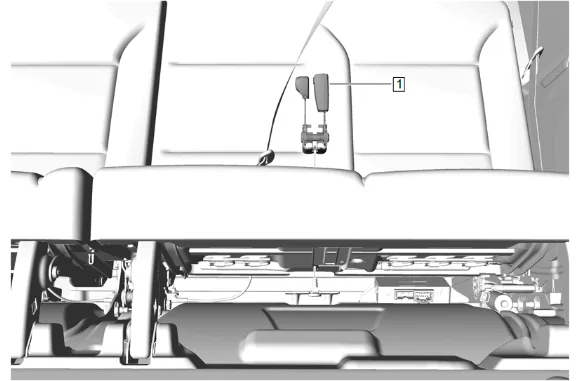

3rd Row Seat Riser Replacement (Manual) — figure 6

6. 3rd Row Seat Belt Buckle (1) » Remove

3rd Row Seat Riser Replacement (Manual) — figure 7

7. 3rd Row Seat Nut (1) » Remove

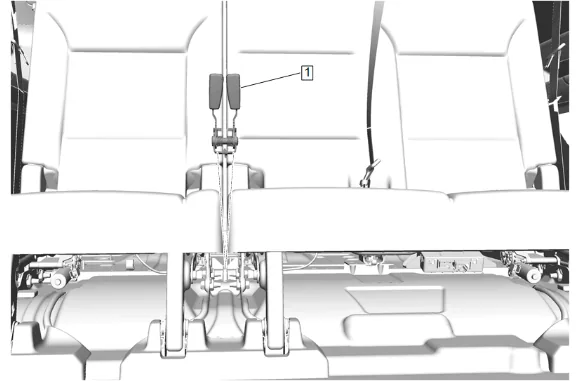

3rd Row Seat Riser Replacement (Manual) — figure 8

8. 3rd Row Seat Belt Buckle (1) » Remove

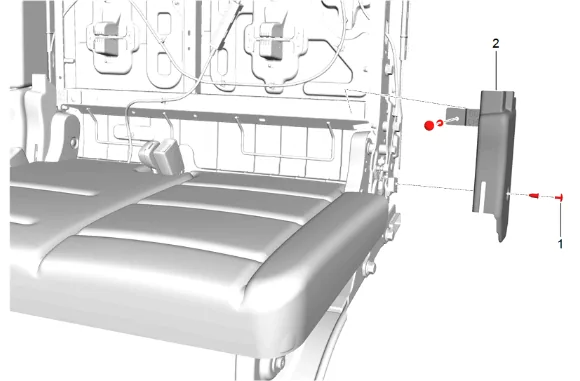

3rd Row Seat Riser Replacement (Manual) — figure 9

9. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
10. 3rd Row Seat Hinge Finish Cover - Outer (2) » Remove

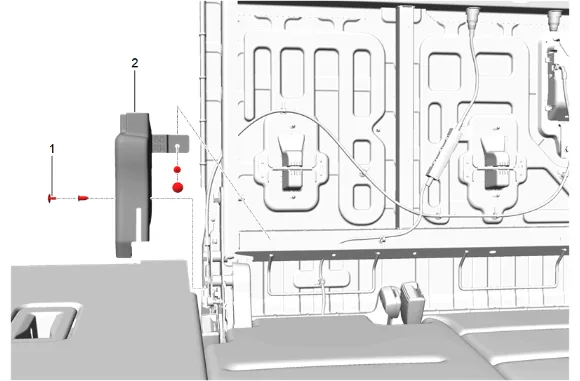

3rd Row Seat Riser Replacement (Manual) — figure 10

11. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
12. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Remove

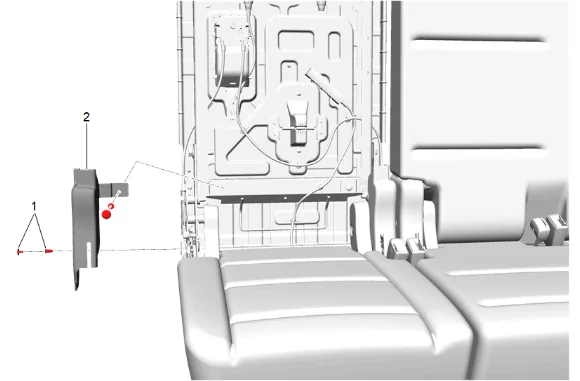

3rd Row Seat Riser Replacement (Manual) — figure 11

13. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
14. 3rd Row Seat Hinge Finish Cover - Outer (2) » Remove

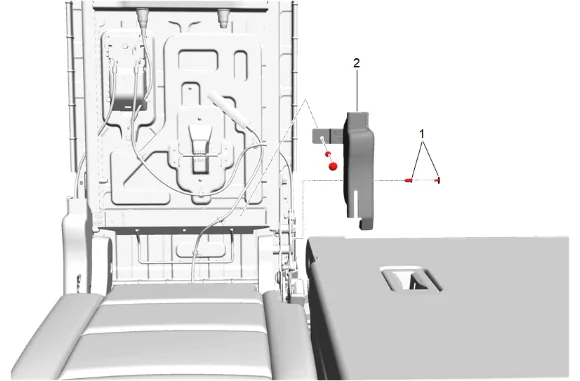

3rd Row Seat Riser Replacement (Manual) — figure 12

15. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
16. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Remove

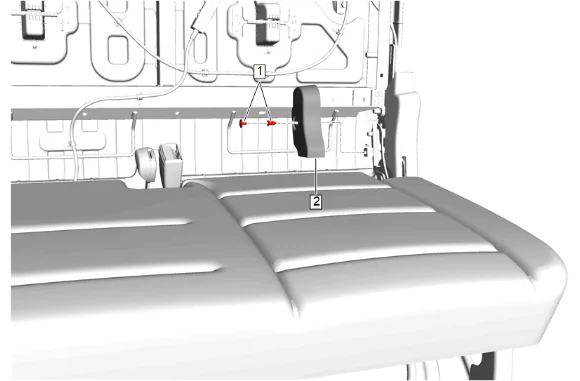

3rd Row Seat Riser Replacement (Manual) — figure 13

17. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
18. 3rd Row Seat Hinge Finish Cover - Inside Outer (2) » Remove [2x]

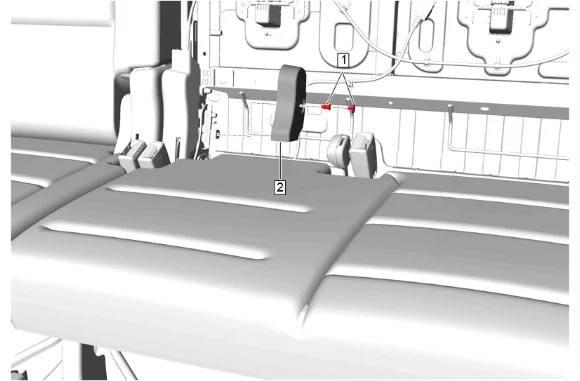

3rd Row Seat Riser Replacement (Manual) — figure 14

19. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
20. 3rd Row Seat Hinge Finish Inner Cover - Inside Inner (2) » Remove [2x]

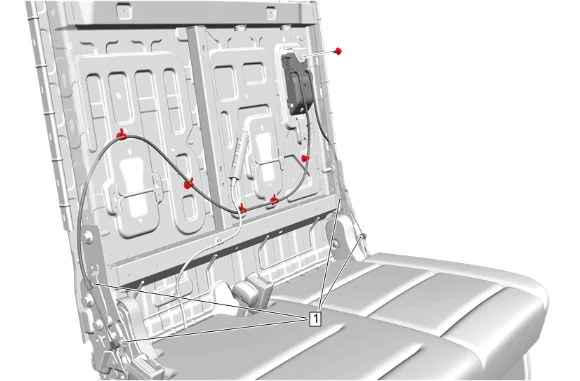

3rd Row Seat Riser Replacement (Manual) — figure 15

21. Disconnect both 3rd row seat back latch release handle cable ends (1) from the seat back latch.

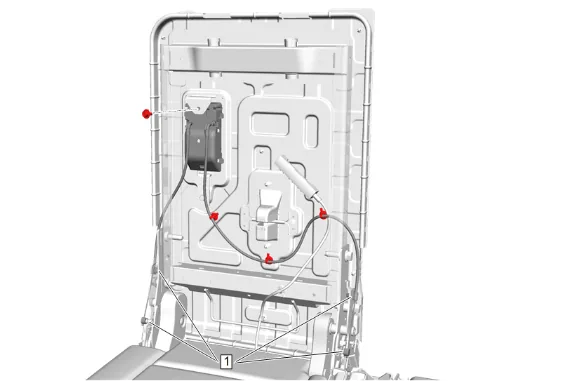

3rd Row Seat Riser Replacement (Manual) — figure 16

22. Disconnect both 3rd row seat back latch release handle cable ends (1) from the seat back latch.

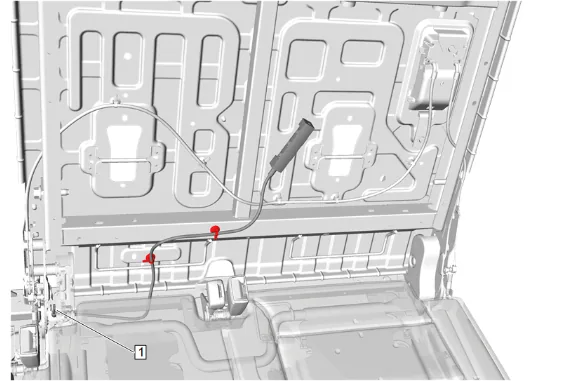

3rd Row Seat Riser Replacement (Manual) — figure 17

23. Disconnect the 3rd row seat back latch cable end (1) from the seat back latch.

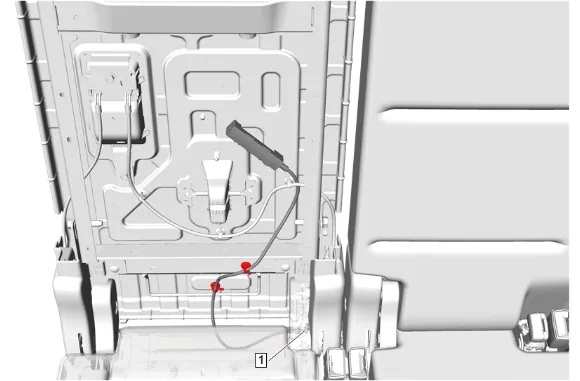

3rd Row Seat Riser Replacement (Manual) — figure 18

24. Disconnect the 3rd row seat back latch cable end (1) from the seat back latch.

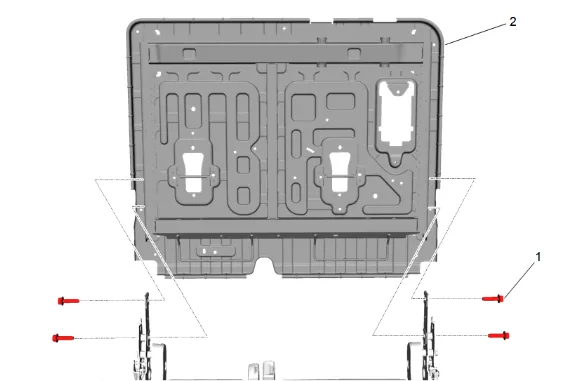

3rd Row Seat Riser Replacement (Manual) — figure 19

25. 3rd Row Seat Back Frame Bolt (1) » Remove [4x]
26. 3rd Row Seat Back Frame (2) » Remove

3rd Row Seat Riser Replacement (Manual) — figure 20

27. 3rd Row Seat Back Frame Bolt (1) » Remove [4x]
28. 3rd Row Seat Back Frame (2) » Remove

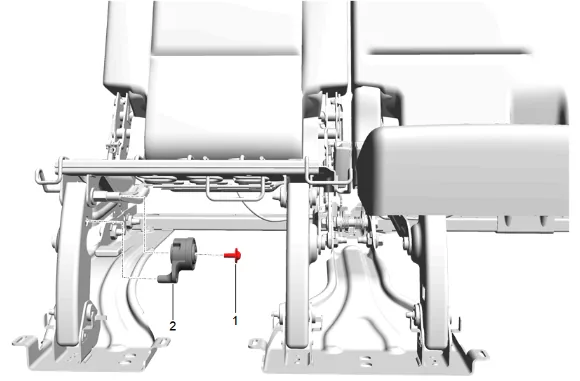

3rd Row Seat Riser Replacement (Manual) — figure 21

Note

Right side shown, left side similar.

29. Rear Seat Cushion Frame Dampener Bolt (1) » Remove [2x]
30. Rear Seat Cushion Frame Dampener (2) » Remove [2x]

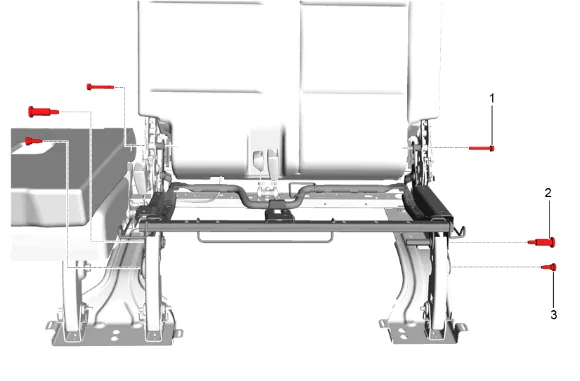

3rd Row Seat Riser Replacement (Manual) — figure 22

31. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Remove [2x]
32. 3rd Row Seat Cushion Frame Bolt – Front (2) » Remove [2x]
33. 3rd Row Seat Cushion Frame Link Bolt (3) » Remove [2x]

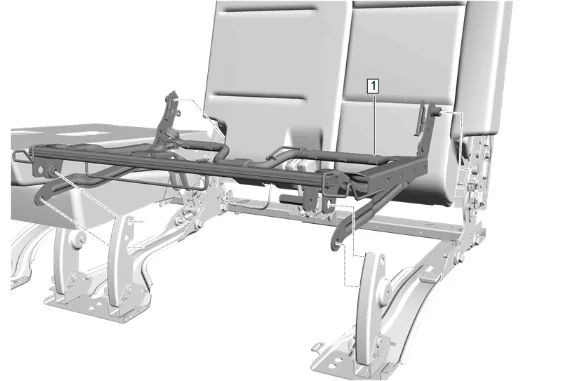

3rd Row Seat Riser Replacement (Manual) — figure 23

34. 3rd Row Seat Cushion Frame (1) » Remove

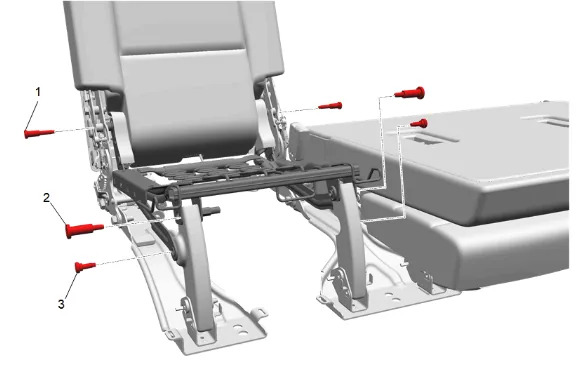

3rd Row Seat Riser Replacement (Manual) — figure 24

35. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Remove [2x]
36. 3rd Row Seat Cushion Frame Bolt – Front (2) » Remove [2x]
37. 3rd Row Seat Cushion Frame Link Bolt (3) » Remove [2x]

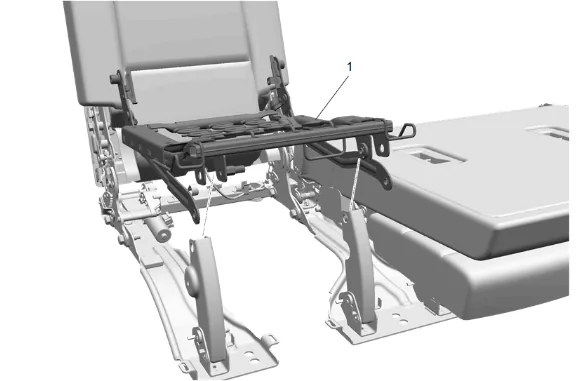

3rd Row Seat Riser Replacement (Manual) — figure 25

38. 3rd Row Seat Cushion Frame (1) » Remove

3rd Row Seat Riser Replacement (Manual) — figure 26

39. 3rd Row Seat Riser (1) » Remove Installation Procedure

40. 3rd Row Seat Riser (1) » Install

41. 3rd Row Seat Cushion Frame (1) » Install

42. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 3.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 3.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 3.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 3.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Caution

Refer to Fastener Caution.

4. 3rd Row Seat Cushion Frame Link Bolt (3) » Install and tighten [2x] — Fastener Specifications

5. 3rd Row Seat Cushion Frame Bolt – Front (2) » Install and tighten [2x] — Fastener Specifications

6. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Install and tighten [2x] — Fastener Specifications

7. 3rd Row Seat Cushion Frame (1) » Install

8. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 8.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 8.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 8.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 8.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

9. 3rd Row Seat Cushion Frame Link Bolt (3) » Install and tighten [2x] — Fastener Specifications

10. 3rd Row Seat Cushion Frame Bolt – Front (2) » Install and tighten [2x] — Fastener Specifications

11. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Install and tighten [2x] — Fastener Specifications

12. Rear Seat Cushion Frame Dampener (2) » Install [2x]

13. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 13.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 13.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 13.3. Remove loose debris from internal and external threads using compressed air. 13.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

14. Rear Seat Cushion Frame Dampener Bolt (1) » Install and tighten [2x] — Fastener Specifications

15. 3rd Row Seat Back Frame (2) » Install

16. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 16.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 16.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 16.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 16.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Note

Bolt holes are oversized to allow for seat back frame adjustment. Align the seat back frame with the opposite side seat back before tightening the seat back frame bolts.

17. 3rd Row Seat Back Frame Bolt (1) » Install and tighten [4x] — Fastener Specifications

18. 3rd Row Seat Back Frame (2) » Install

19. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 19.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 19.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 19.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 19.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Note

Bolt holes are oversized to allow for seat back frame adjustment. Align the seat back frame with the opposite side seat back before tightening the seat back frame bolts.

20. 3rd Row Seat Back Frame Bolt (1) » Install and tighten [4x] — Fastener Specifications

21. Connect the 3rd row seat back latch cable end (1) to the seat back latch.

22. Connect the 3rd row seat back latch cable end (1) to the seat back latch.

23. Connect both 3rd row seat back latch release handle cable ends (1) to the seat back latch.

24. Connect both 3rd row seat back latch release handle cable ends (1) to the seat back latch.

25. 3rd Row Seat Hinge Finish Inner Cover - Inside Inner (2) » Install [2x]

26. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

27. 3rd Row Seat Hinge Finish Cover - Inside Outer (2) » Install [2x]

28. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

29. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Install

30. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

31. 3rd Row Seat Hinge Finish Cover - Outer (2) » Install

32. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

33. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Install

34. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

35. 3rd Row Seat Hinge Finish Cover - Outer (2) » Install

36. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

37. 3rd Row Seat Belt Buckle (1) » Install

38. 3rd Row Seat Nut (1) » Install and tighten — Fastener Specifications

39. 3rd Row Seat Belt Buckle (1) » Install

40. 3rd Row Seat Nut (1) » Install and tighten — Fastener Specifications

41. 3rd Row Seat Cushion Cover and Pad (1) » Install — 3rd Row Seat Cushion Cover and Pad Removal and Installation

42. 3rd Row Seat Cushion Cover and Pad (1) » Install — 3rd Row Seat Cushion Cover and Pad Removal and Installation

43. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation

44. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation
