Front Center Seat Removal and Installation

Removal Procedure

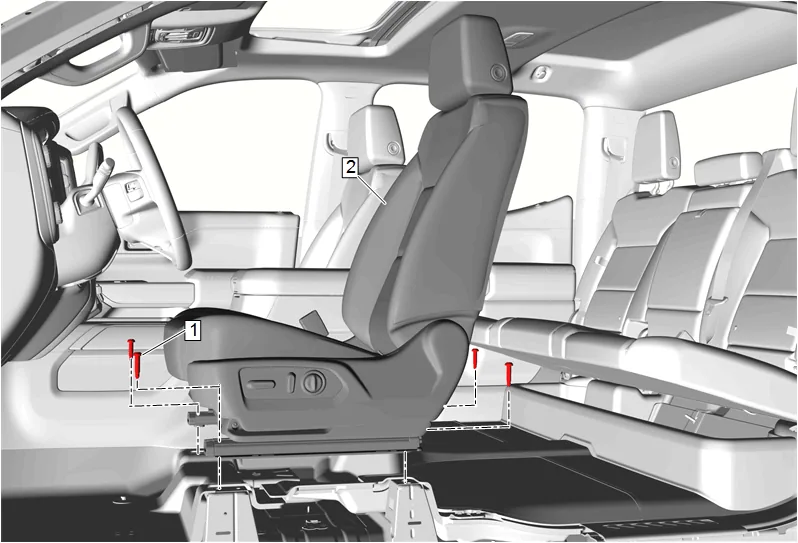

Front Center Seat Removal and Installation — figure 1

1. Front Seat (2) » Remove [2x] — Front Seat Removal and Installation

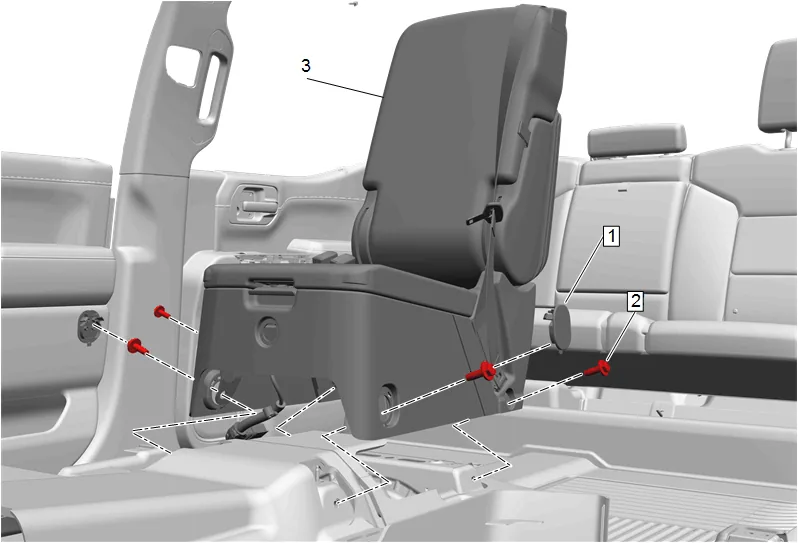

Front Center Seat Removal and Installation — figure 2

2. Front Seat Center Storage Compartment Bolt Cap (1) » Remove [2x]

3. Front Seat Bolt (2) » Remove [4x]

4. Disconnect the electrical connector.

5. Front Center Seat (3) » Remove Installation Procedure

6. Front Center Seat (3) » Install

7. Connect the electrical connector.

Caution

Refer to Fastener Caution.

3. Front Seat Bolt (2) » Install and tighten [4x] — Fastener Specifications

4. Front Seat Center Storage Compartment Bolt Cap (1) » Install [2x]

5. Front Seat (2) » Install [2x] — Front Seat Removal and Installation
