Overview Baffle Positions

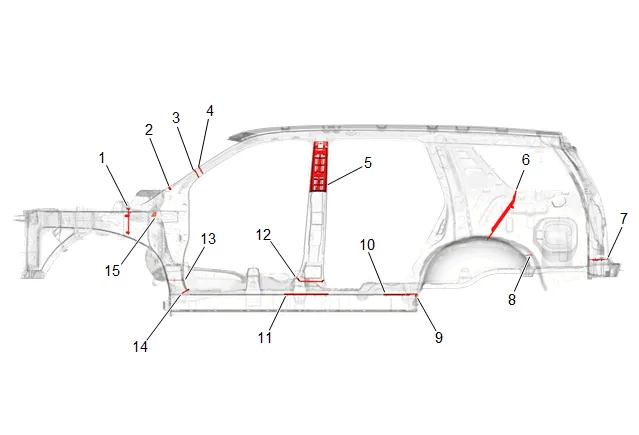

Table 1: SWB Table 2: LWB SWB
SWB Number Description Procedure
| Number | Description | Procedure |
|---|---|---|
| 1 | Baffle | Baffle Specifications |
| 2 | Baffle (Not Serviced) | |
| 3 | Sealing Strip (Not Serviced) | |
| 4 | Baffle (Not Serviced) | |
| 5 | Reinforcement | |
| 7 | Baffle (Not Serviced) | |
| 8 | Sealing Strip (Not Serviced) | |
| 10 | Baffle (Not Serviced) | |
| 11 | Baffle (Not Serviced) | |
| 12 | Sealing Strip (Not Serviced) | |
| 13 | Baffle (Not Serviced) | |
| 14 | Sealing Strip (Not Serviced) | |
| 15 | Sealing Strip (Not Serviced) |

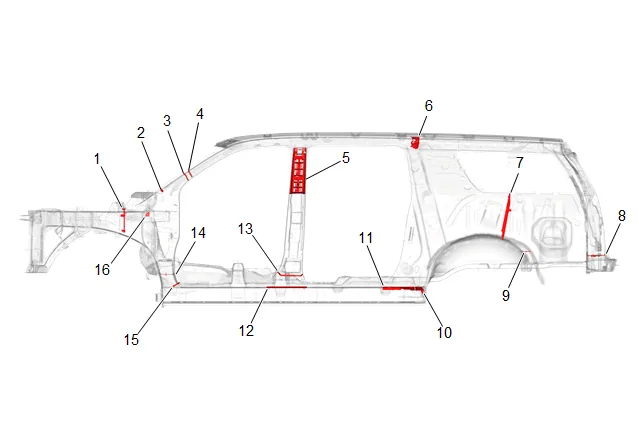

LWB
LWB Number Description Procedure
| Number | Description | Procedure |
|---|---|---|
| 1 | Baffle | Baffle Specifications |
| 2 | Baffle (Not Serviced) | |
| 3 | Sealing Strip (Not Serviced) | |
| 4 | Baffle (Not Serviced) | |
| 5 | Reinforcement | |
| 6 | Baffle (Not Serviced) | |
| 8 | Baffle (Not Serviced) | |
| 9 | Sealing Strip (Not Serviced) | |
| 12 | Baffle (Not Serviced) | |
| 13 | Sealing Strip (Not Serviced) | |
| 14 | Baffle (Not Serviced) | |
| 15 | Sealing Strip (Not Serviced) | |
| 16 | Sealing Strip (Not Serviced) |
