Rear Body Fuse Block Bracket Replacement

Removal Procedure

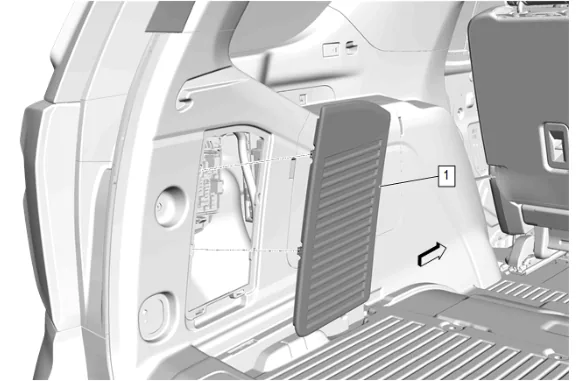

Rear Body Fuse Block Bracket Replacement — figure 1
Rear Body Fuse Block Bracket Replacement — figure 1
  1. Quarter Stowage Pocket Door (1) » Remove
  2. Fold down the 3rd row seats.

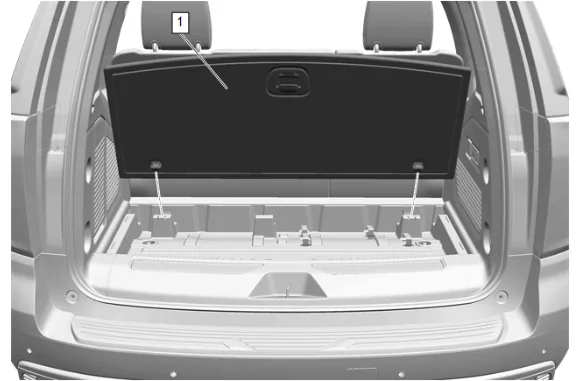

Rear Body Fuse Block Bracket Replacement — figure 2
Rear Body Fuse Block Bracket Replacement — figure 2
  1. Load Floor Trim Panel (1) » Remove
Rear Body Fuse Block Bracket Replacement — figure 3
Rear Body Fuse Block Bracket Replacement — figure 3

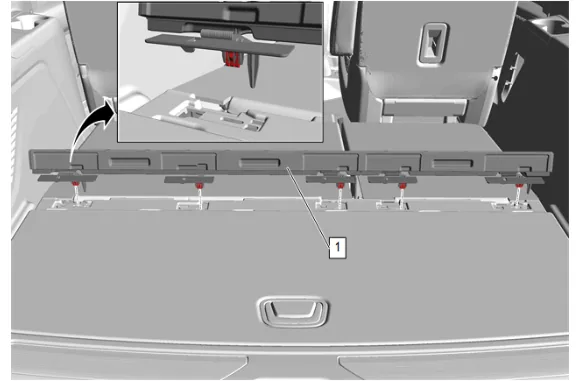

  1. Use a flat bladed plastic tool to disengage the 5 retaining clips from the rear compartment floor stowage trim compartment.
  2. Rear Compartment Floor Panel Front Trim (1) » Remove

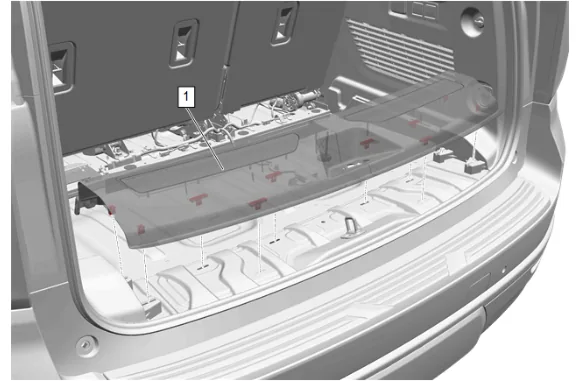

Rear Body Fuse Block Bracket Replacement — figure 4
Rear Body Fuse Block Bracket Replacement — figure 4

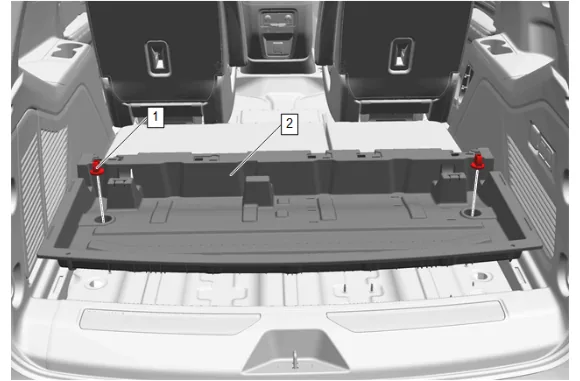

  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Remove [2x]
  2. Rear Compartment Floor Stowage Trim Compartment (2) » Remove

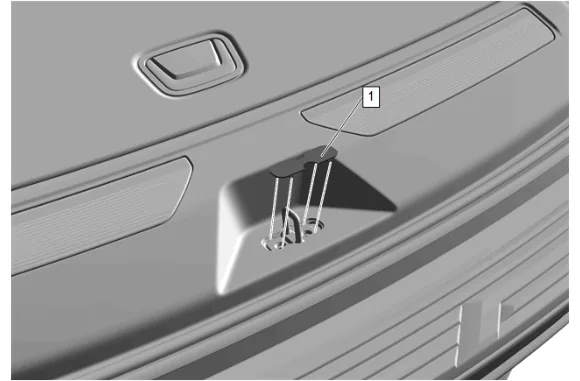

Rear Body Fuse Block Bracket Replacement — figure 5
Rear Body Fuse Block Bracket Replacement — figure 5
  1. Liftgate Lock Striker Cover (1) » Remove
Rear Body Fuse Block Bracket Replacement — figure 6
Rear Body Fuse Block Bracket Replacement — figure 6
  1. Use a flat bladed plastic tool to disengage retaining clips on the rear end trim finish panel (1).
  2. Rear End Trim Finish Panel (1) » Remove

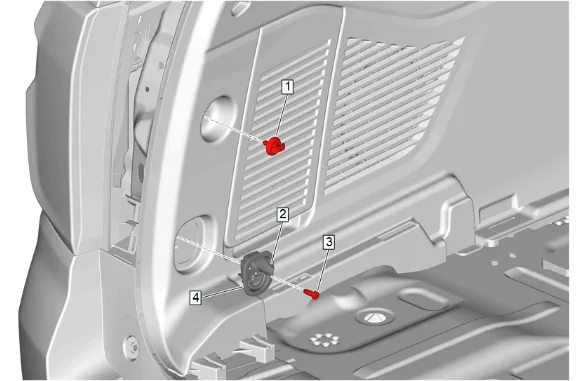

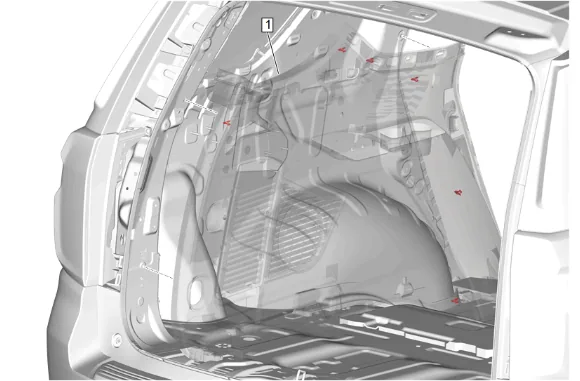

Rear Body Fuse Block Bracket Replacement — figure 7
Rear Body Fuse Block Bracket Replacement — figure 7
  1. Convenience Net Retainer (1) » Remove
  2. Cargo Tie Down Loop Bolt Cap (2) » Open
  3. Cargo Tie Down Loop Bolt (3) » Remove
  4. Cargo Tie Down Loop (4) » Remove
Rear Body Fuse Block Bracket Replacement — figure 8
Rear Body Fuse Block Bracket Replacement — figure 8
  1. Using a flat-bladed plastic trim tool, release the lower left side retaining clips.
  2. Quarter Lower Rear Trim Panel (1) » Reposition
Rear Body Fuse Block Bracket Replacement — figure 9
Rear Body Fuse Block Bracket Replacement — figure 9

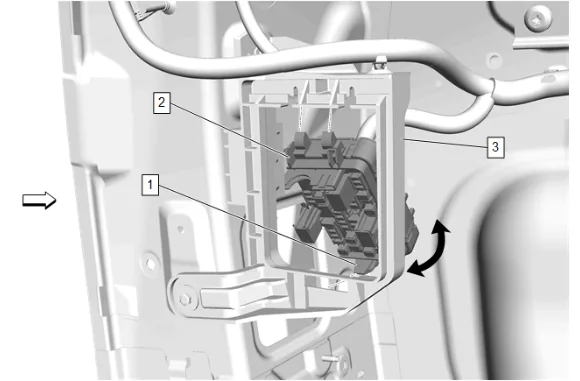

  1. Disengage the retaining tab (1) and rotate the body wiring harness junction block (2), away from the rear body fuse block bracket (3).

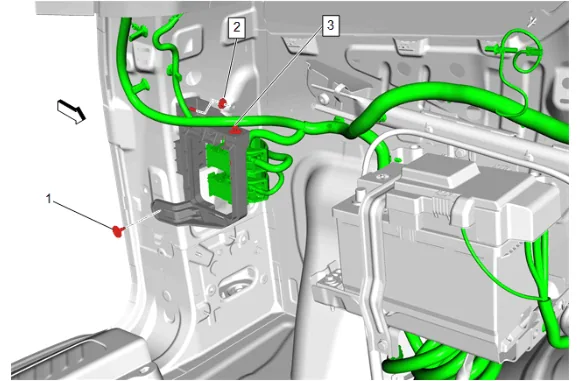

Rear Body Fuse Block Bracket Replacement — figure 10
Rear Body Fuse Block Bracket Replacement — figure 10
  1. Retainer (3) » Disengage
  2. Rear Body Fuse Block Bolt (1) » Remove
  3. Body Wiring Harness Junction Block Bracket Nut (2) » Remove

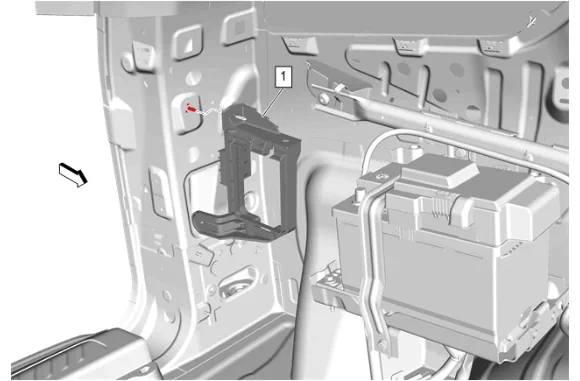

Rear Body Fuse Block Bracket Replacement — figure 11
Rear Body Fuse Block Bracket Replacement — figure 11

  1. Rear Body Fuse Block Bracket (1) » Remove Installation Procedure

  2. Rear Body Fuse Block Bracket (1) » Install

  1. Rear Body Fuse Block Bolt (1) » Install and tighten — Fastener Specifications

  2. Body Wiring Harness Junction Block Bracket Nut (2) » Install and tighten — Fastener Specifications

  3. Retainer (3) » Engage

  4. Install the body wiring harness junction block (2) and engage the retaining tab (1) into the rear body fuse block bracket (3).

  5. Quarter Lower Rear Trim Panel (1) » Install

  6. Cargo Tie Down Loop (4) » Install

  7. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

  8. Cargo Tie Down Loop Bolt Cap (2) » Close

  9. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

  10. Rear End Trim Finish Panel (1) » Install

  11. Liftgate Lock Striker Cover (1) » Install

  1. Rear Compartment Floor Stowage Trim Compartment (2) Install

  2. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Install [2x] — Fastener Specifications

  3. Rear Compartment Floor Panel Front Trim (1) » Install

  4. Load Floor Trim Panel (1) » Install

  5. Return the seat to its original position.

  6. Quarter Stowage Pocket Door (1) » Install
