Tahoe / Yukon Service Manual

Engine Identification (1)

Engine Identification

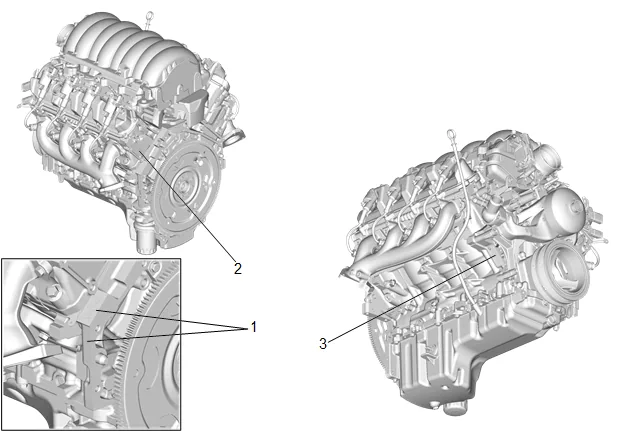

Engine Identification (1) — figure 1
Engine Identification (1) — figure 1

The vehicle identification number (VIN) is located on the left side rear of the engine block (1) and is typically an 11 digit number stamped or laser-etched onto the engine at the vehicle assembly plant. The first digit identifies the division. The second digit identifies the model year. The third digit identifies the assembly plant. The fourth through eleventh digits are the last 8 digits of the VIN. Engine identification can also be made through use of the Engine Traceability label (2) on the rear of the left cylinder head, or the Engine Traceability label (3) on the engine block as shown.

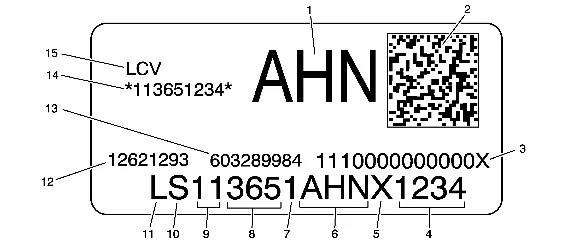

Engine Identification (1) — figure 2
Engine Identification (1) — figure 2
  1. Broadcast Code
  2. Machine Readable 2D Matrix
  3. VPPS Code
  4. Part Sequence Number
  5. Reserved use
  6. Broadcast Code
  7. Model year
  8. Julian Date
  9. Build Year
  10. Shift ID
  11. Plant ID
  12. GM Part Number
  13. Plant DUNS Number
  14. Sequence Number
  15. RPO/Engine Family Code
