Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side

Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side — figure 1
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side — figure 1

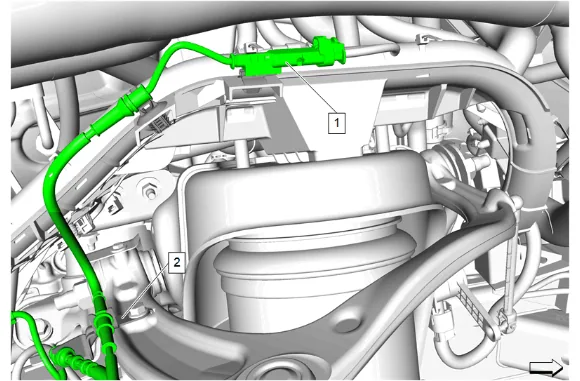

  1. Disconnect the electronic suspension wheel front vertical accelerometer electrical connector (1).
  2. Unclip the electronic suspension wheel front vertical accelerometer harness from the chassis wiring harness front bracket and the front wheel speed sensor bracket (2).
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side — figure 2
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side — figure 2

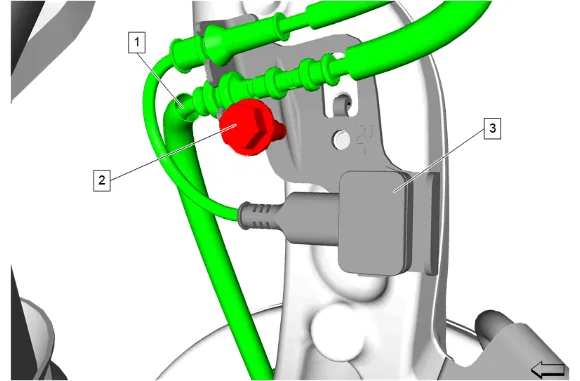

  1. Remove the harness (1) from the electronic suspension wheel front vertical accelerometer (3).

  2. Electronic Suspension Rear Vertical Accelerometer Bolt (2) » Remove

  3. Electronic Suspension Wheel Front Vertical Accelerometer (3) » Remove Installation Procedure

  4. Electronic Suspension Wheel Front Vertical Accelerometer (3) » Install

  1. Electronic Suspension Rear Vertical Accelerometer Bolt (2) » Install and tighten — Fastener Specifications

  2. Install the harness (1) to the electronic suspension wheel front vertical accelerometer (3).

  3. Clip the electronic suspension wheel front vertical accelerometer to the chassis wiring harness front bracket and the front wheel speed sensor bracket (2).

  4. Connect the electronic suspension wheel front vertical accelerometer electrical connector (1).

  5. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

  6. Remove the support and lower the vehicle.
