Turn Signal Bulb Replacement

Removal Procedure

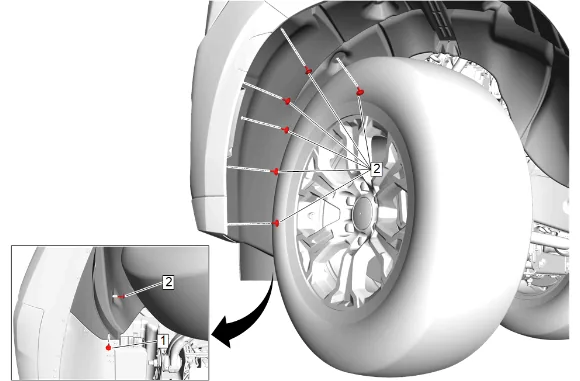

Turn Signal Bulb Replacement — figure 1
Turn Signal Bulb Replacement — figure 1
  1. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove
  1. Front Wheelhouse Liner Bolt (2) » Remove [7x]

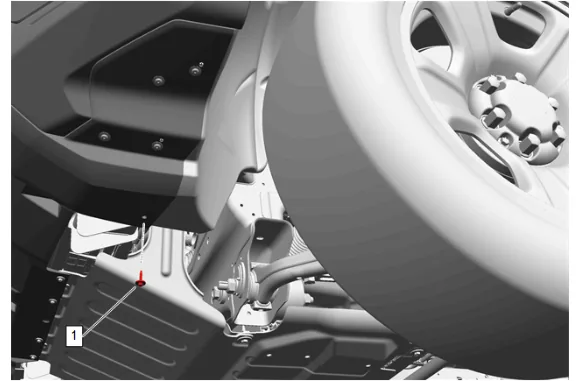

Turn Signal Bulb Replacement — figure 2
Turn Signal Bulb Replacement — figure 2
  1. { If equipped } Front Bumper Fascia Bolt (1) » Remove

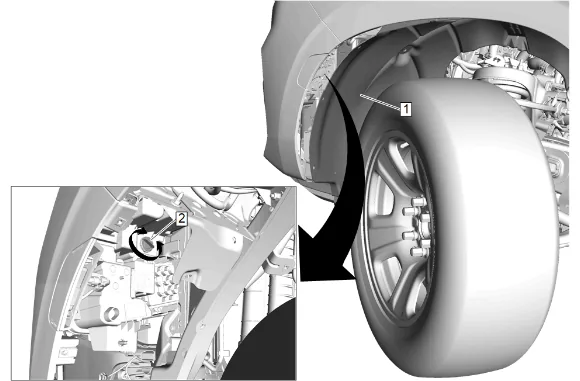

Turn Signal Bulb Replacement — figure 3
Turn Signal Bulb Replacement — figure 3
  1. Front Wheelhouse Liner (1) » Reposition
  2. Rotate the headlamp socket (2) a quarter turn counterclockwise to release.

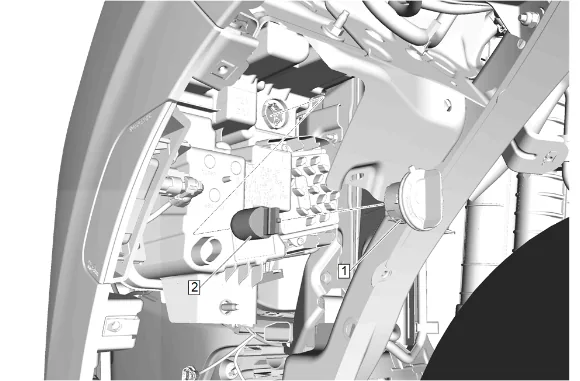

Turn Signal Bulb Replacement — figure 4
Turn Signal Bulb Replacement — figure 4

  1. Headlamp Socket (1) » Remove

  2. Remove the turn signal bulb (2) straight from the headlamp socket (1). Installation Procedure

  3. Install the turn signal bulb (2) straight into the headlamp socket (1).

  4. Headlamp Socket (1) » Install

  5. Rotate the headlamp socket (1) a quarter turn clockwise to engage.

  6. Front Wheelhouse Liner (1) » Install

  1. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten — Fastener Specifications
  1. Front Wheelhouse Liner Bolt (2) » Install and tighten [7x] — Fastener Specifications
  2. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications
