Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87)

Air Conditioning Refrigerant Pressure Sensor Replacement (L84/L87) Single Use Fasteners and Components Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal Removal Procedure

1. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

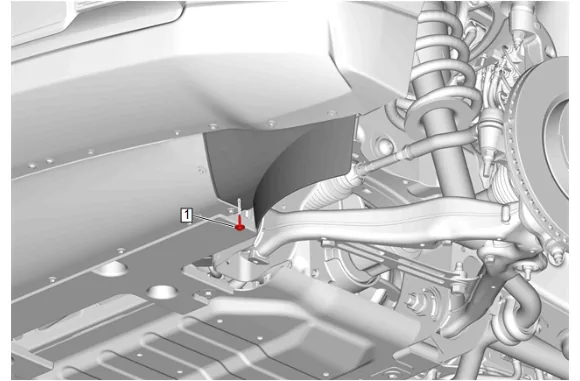

Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87) — figure 1

Note

Left side shown, right side similar.

2. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Remove

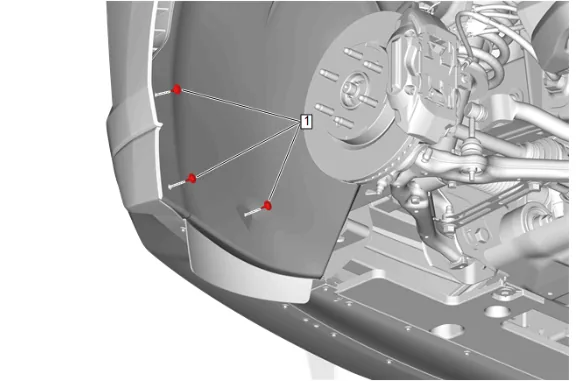

Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87) — figure 2

Note

Quantity of fasteners may vary based on option content. Left side shown, right side similar.

3. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

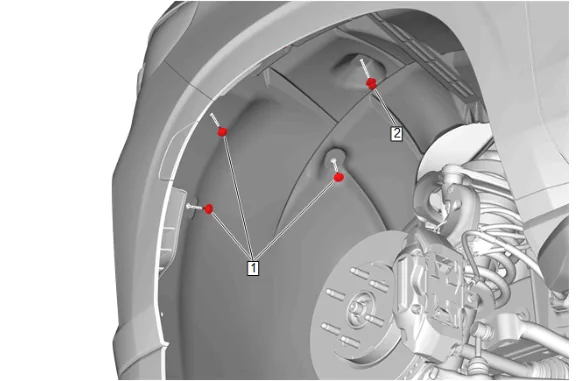

Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87) — figure 3

Note

Left side shown, right side similar.

4. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
5. Front Wheelhouse Liner Retainer - Right Side (2) » Remove

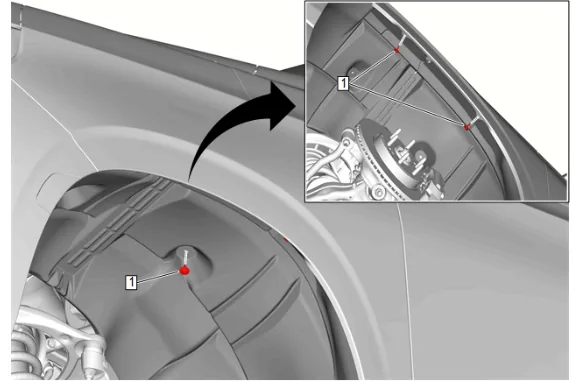

Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87) — figure 4

Note

Left side shown, right side similar.

6. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

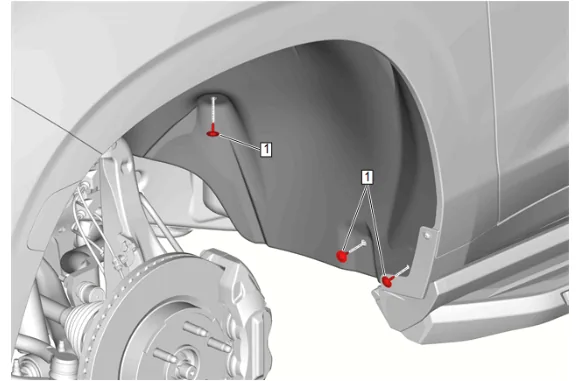

Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87) — figure 5

Note

Left side shown, right side similar.

7. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

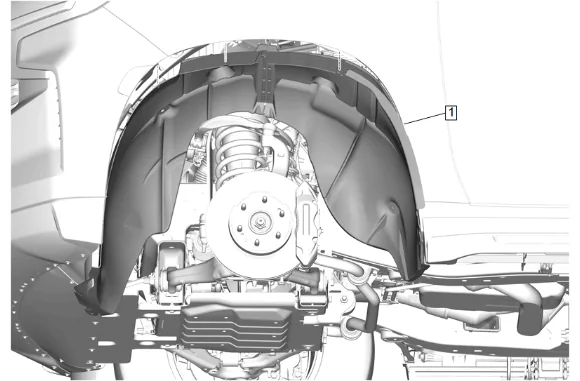

Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87) — figure 6

Note

Left side shown, right side similar.

8. Front Wheelhouse Liner - Right Side (1) » Remove

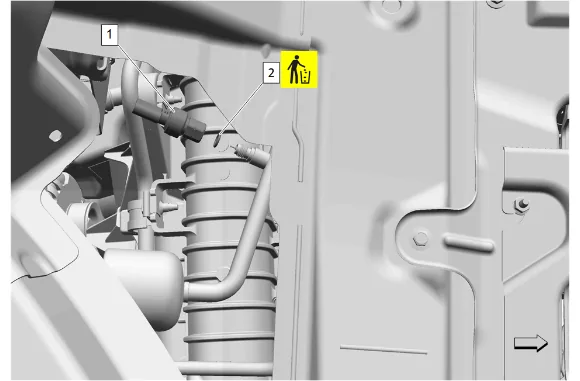

Air Conditioning Refrigerant Pressure Sensor Replacement (L84_L87) — figure 7

9. Disconnect the electrical connector.
10. Air Conditioning Refrigerant Pressure Sensor (1) » Remove
11. Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal (2) » Remove and DISCARD Installation Procedure

Caution

New Air Conditioning sealing washers should never be exposed to any type of oil or lubricant, the rubber material may absorb the oil causing failures during installation or the life of the vehicle.

1. Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal (2) » Install NEW

Caution

Refer to Component Fastener Tightening Caution.

2. Air Conditioning Refrigerant Pressure Sensor (1) » Install and tighten — Fastener Specifications
3. Connect the electrical connector.

Note

Left side shown, right side similar.

4. Front Wheelhouse Liner - Right Side (1) » Install

Caution

Refer to Fastener Caution.

Note

Left side shown, right side similar.

5. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

6. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

7. Front Wheelhouse Liner Retainer - Right Side (2) » Install
8. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content. Left side shown, right side similar.

9. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

10. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Install and tighten — Fastener Specifications
11. Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation
