Tahoe / Yukon Service Manual

Rotating Clutch, Gear, and Shaft Shell Assembly Removal

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4483674 Special Tools DT-45053 Universal Clamp Press DT-52090 Lifting Bar Equivalent regional tools: Special Tools

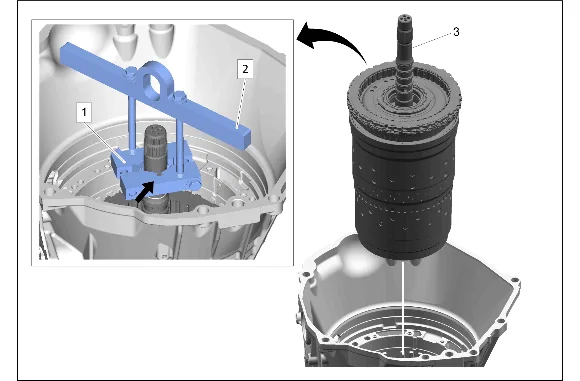

Rotating Clutch, Gear, and Shaft Shell Assembly Removal — figure 1
Rotating Clutch, Gear, and Shaft Shell Assembly Removal — figure 1
  1. Attach the DT-45053 Universal Clamp Press (1) to the Rotating Clutch, Gear, and Shaft Shell (3).
  2. Ensure that the DT-45053 Universal Clamp Press (1) is under the boss on the input shaft shown by arrow.
  3. Attach DT-52090 Lifting Bar (2) to the DT-45053 Universal Clamp Press (1).
  4. Use a hoist or chainfall to lift Rotating Clutch, Gear, and Shaft Shell (3) from case.

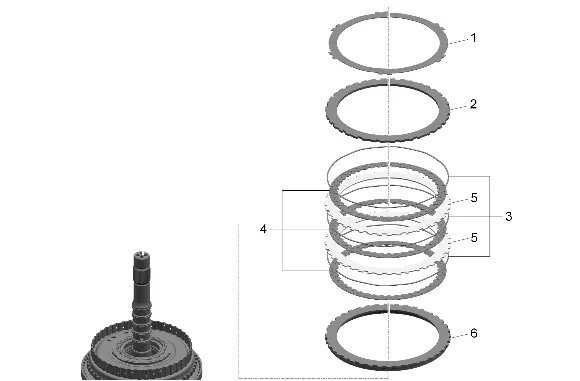

Rotating Clutch, Gear, and Shaft Shell Assembly Removal — figure 2
Rotating Clutch, Gear, and Shaft Shell Assembly Removal — figure 2
  1. 1-2-3-4-5-6-Reverse Clutch Waved Plate (1) » Remove
  2. 1-2-3-4-5-6-Reverse Clutch Apply Plate - Selective (2) » Remove
  3. 1-2-3-4-5-6-Reverse Clutch Piston Return Spring (3) » Remove [3x]
  4. 1-2-3-4-5-6-Reverse Clutch Friction Plate (4) » Remove [3x]
  5. 1-2-3-4-5-6-Reverse Clutch Steel Plate (5) » Remove [2x]
  6. 1-2-3-4-5-6-Reverse Clutch Backing Plate (6) » Remove
