Front Brake Caliper Bleeder Valve Replacement (J55)

Warning

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

Warning

Brake Dust Warning

Warning

Brake Fluid Irritant Warning Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Raise and support the vehicle. Lifting and Jacking the Vehicle
3. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

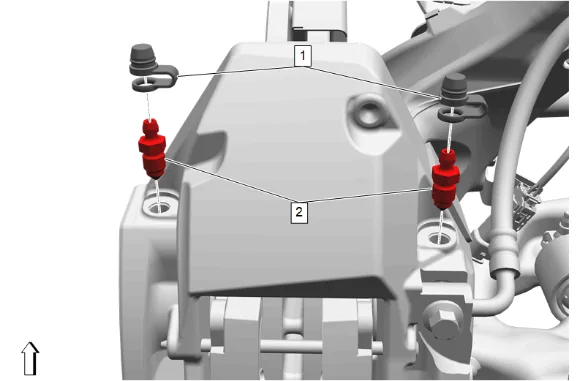

Front Brake Caliper Bleeder Valve Replacement (J55) — figure 1

4. Front Brake Caliper Bleeder Valve Cap (1) » Remove [2x]
5. Front Brake Caliper Bleeder Valve (2) » Remove [2x] Installation Procedure

Caution

Component Fastener Tightening Caution

1. Front Brake Caliper Bleeder Valve (2) » Install and tighten [2x] — Fastener Specifications
2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Bleed the brake system. Hydraulic Brake System Bleeding
4. Front Brake Caliper Bleeder Valve Cap (1) » Install [2x]
5. Check for brake system leaks.
6. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
7. Remove the support and lower the vehicle.
