Transmission Support Crossmember Replacement (4WD without F47)

Transmission Support Crossmember Replacement (4WD without F47) Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

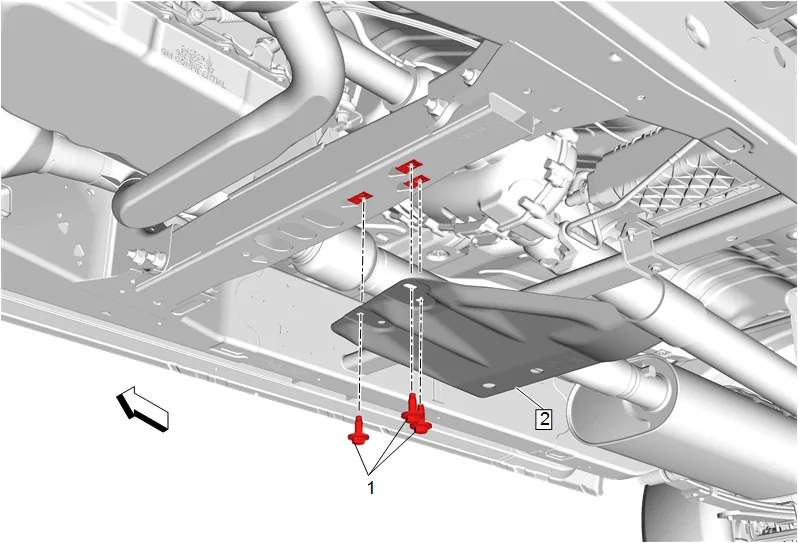

Transmission Support Crossmember Replacement (4WD without F47) — figure 1

2. {If equipped} Remove the transfer case skid shield: 2.1. Transfer Case Skid Shield Bolt (1) » Remove [3x] 2.2. Transfer Case Skid Shield (2) » Remove

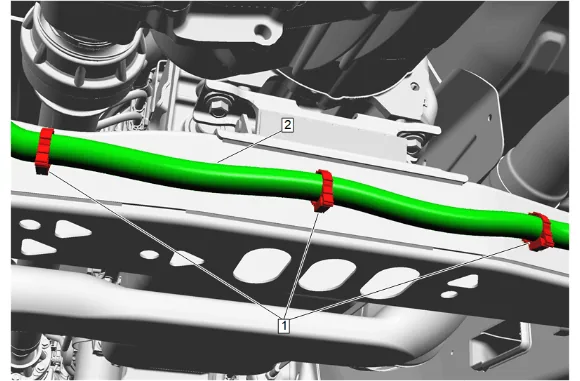

Transmission Support Crossmember Replacement (4WD without F47) — figure 2

3. If equipped, remove the 3 wiring harness retainers (1) from the transmission support crossmember, and reposition the wiring harness (2) as necessary.
4. Support the transmission with a suitable jack.

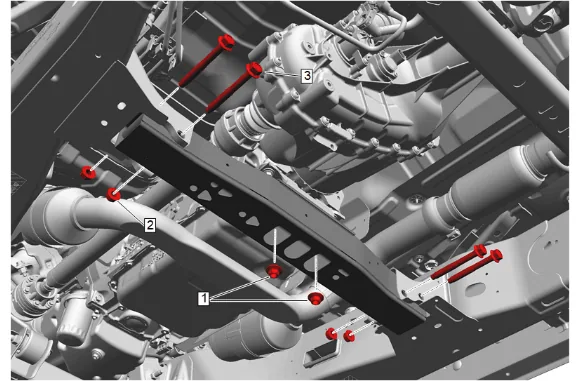

Transmission Support Crossmember Replacement (4WD without F47) — figure 3

5. Transmission Mount Nut (1) » Remove [2X]
6. Transmission Support Crossmember Nut (2) » Remove [4x]
7. Transmission Support Crossmember Bolt (3) » Remove [4x]

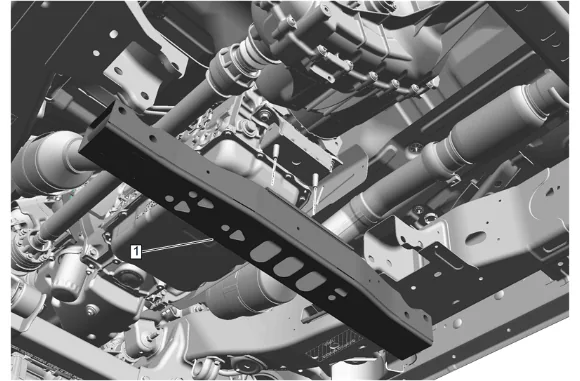

Transmission Support Crossmember Replacement (4WD without F47) — figure 4

8. Transmission Support Crossmember (1) » Remove Installation Procedure

9. Transmission Support Crossmember (1) » Install

10. Transmission Support Crossmember Bolt (3) » Install [4x]

Caution

Refer to Fastener Caution

3. Transmission Support Crossmember Nut (2) » Install and tighten [4x] — Fastener Specifications

4. Transmission Mount Nut (1) » Install and tighten [2x] — Fastener Specifications

5. Remove the transmission jack.

6. If equipped, install the wiring harness (2) as necessary and install the harness retainers (1) into the transmission support crossmember.

7. {If equipped} Install the transfer case skid shield: 7.1. Transfer Case Skid Shield (2) » Install 7.2. Transfer Case Skid Shield Bolt (1) » Install and tighten [3x] — Fastener Specifications

8. Lower the vehicle.
