Forward Range Radar Bracket Replacement

Removal Procedure

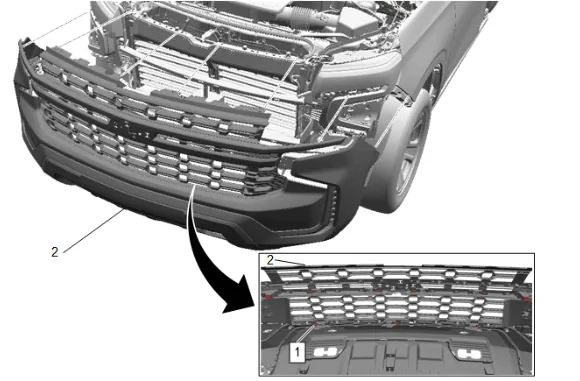

Forward Range Radar Bracket Replacement — figure 1
Forward Range Radar Bracket Replacement — figure 1
  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

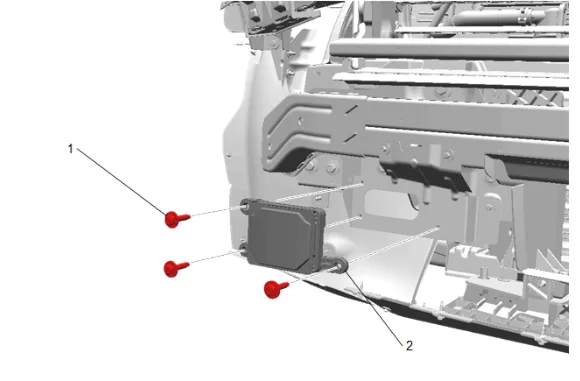

Forward Range Radar Bracket Replacement — figure 2
Forward Range Radar Bracket Replacement — figure 2
  1. Disconnect the electrical connector.
  2. Forward Range Radar Sensor Bolt (1) » Remove [3x]
  3. Forward Range Radar Sensor (2) » Remove

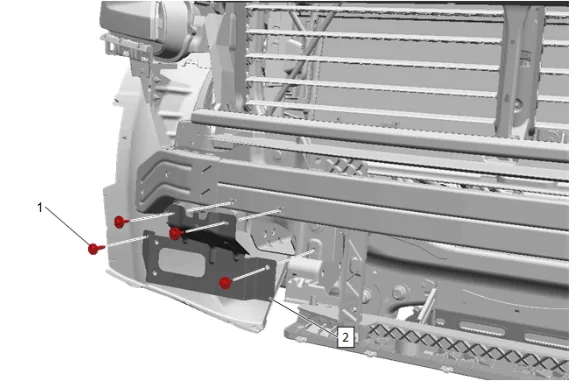

Forward Range Radar Bracket Replacement — figure 3
Forward Range Radar Bracket Replacement — figure 3

  1. Forward Range Radar Bracket Bolt (1) » Remove [4x]

  2. Forward Range Radar Bracket (2) » Remove Installation Procedure

  3. Forward Range Radar Bracket (2) » Install

  1. Forward Range Radar Bracket Bolt (1) » Install [4x] — Fastener Specifications

  2. Forward Range Radar Sensor (2) » Install

  3. Forward Range Radar Sensor Bolt (1) » Install and tighten [3x] — Fastener Specifications

  4. Connect the electrical connector.

  5. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation

  6. Perform the forward range radar sensor module learn. Radar Sensor Module - Long Range Learn
