Forward Collision Alert Display Replacement

Removal Procedure

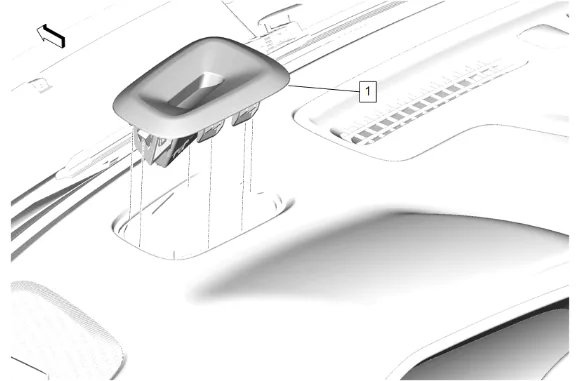

Forward Collision Alert Display Replacement — figure 1

1. Using a suitable plastic trim tool, release the retaining tabs.
2. Disconnect the electrical connector.
3. Forward Collision Alert Display Bezel (1) » Remove

Forward Collision Alert Display Replacement — figure 2

4. Forward Collision Alert Display Bolt (1) » Remove [2x]

5. Forward Collision Alert Display (2) » Remove Installation Procedure

6. Forward Collision Alert Display (2) » Install

Caution

Refer to Fastener Caution.

2. Forward Collision Alert Display Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connector.

4. Forward Collision Alert Display Bezel (1) » Install
