Input Shaft Seal Replacement (1)

Input Shaft Seal Replacement Single Use Fasteners and Components Exhaust System Seal [2x] Transfer Case Input Shaft Seal Transfer Case Front Output Shaft Boot Clamp Transfer Case Adapter Gasket Special Tools DT-50648 Transfer Case Input Shaft Seal Installer Equivalent regional tools: Special Tools Removal Procedure

1. Transfer Case Assembly » Remove — Transfer Case Assembly Replacement

Input Shaft Seal Replacement (1) — figure 1

Caution

Refer to Machined Surface Damage Caution.

Note

Do Not use a pry tool to remove the seal.

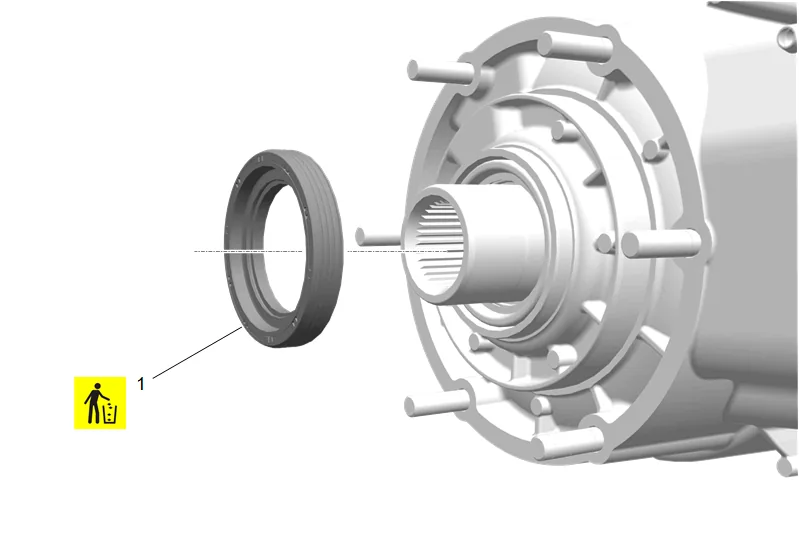

2. Drill a pilot hole and insert a self-tapping screw into the body of the input shaft seal  (1).
3. Using a set of pliers or slide hammer type tool, remove and DISCARD the input shaft seal (1). Installation Procedure

Input Shaft Seal Replacement (1) — figure 2

1. Using the DT-50648 Transfer Case Input Shaft Seal Installer (2), install a NEW transfer case input shaft seal (1).
2. Transfer Case Assembly » Install — Transfer Case Assembly Replacement
