Back Body Opening Side Molding Replacement (Power Liftgate)

Back Body Opening Side Molding Replacement (Power Liftgate)

Warning

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Caution

Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Removal Procedure

1. Open and support the liftgate.

Back Body Opening Side Molding Replacement (Power Liftgate) — figure 1

Note

Component removed for graphic clarity.

2. Using the appropriate tool, release the tabs on the back body opening side center gutter (1) and remove.

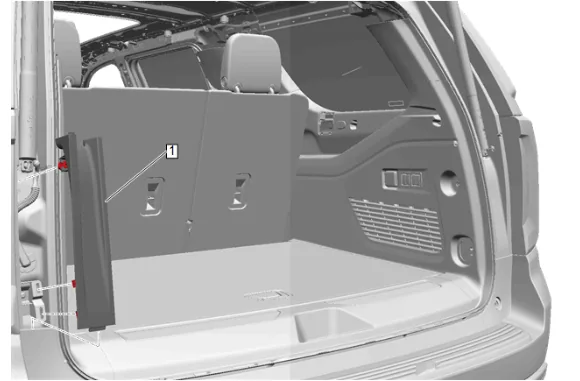

Back Body Opening Side Molding Replacement (Power Liftgate) — figure 2

Note

Component removed for graphic clarity.

3. Release the back body opening side lower gutter retainers and remove the back body opening side lower gutter (1).

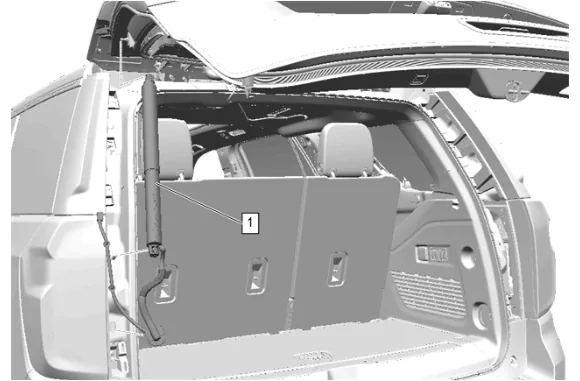

Back Body Opening Side Molding Replacement (Power Liftgate) — figure 3

4. Release the lower actuator retainer clip using a small flat bladed tool to retract the clip slightly while removing the strut end from the corresponding ball stud.
5. Liftgate Power Assist Actuator (1) » Reposition

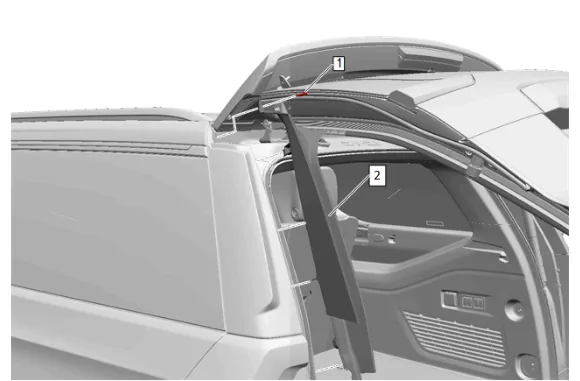

Back Body Opening Side Molding Replacement (Power Liftgate) — figure 4

Note

Component removed for graphic clarity.

6. Back Body Opening Side Molding Bolt (1) » Remove
7. Release the 4 back body opening side gutter retainers and remove the back body opening side gutter (2).

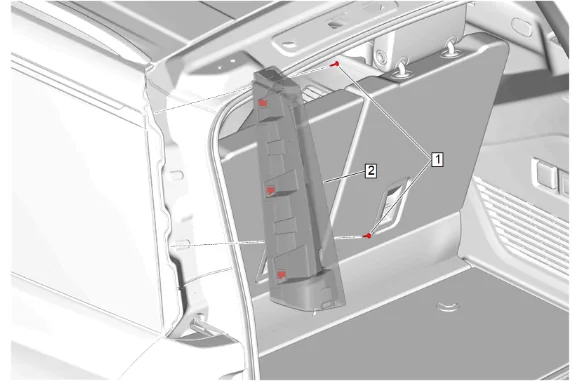

Back Body Opening Side Molding Replacement (Power Liftgate) — figure 5

8. Back Body Opening Side Molding Bolt (1) » Remove [2x]

9. Using a flat-bladed plastic trim tool, release the retaining clips.

10. Back Body Opening Side Molding (2) » Remove Installation Procedure

11. Back Body Opening Side Molding (2) » Install

Caution

Refer to Fastener Caution.

2. Back Body Opening Side Molding Bolt (1) » Install and tighten [2x] — Fastener Specifications

Note

Component removed for graphic clarity.

3. Back Body Opening Side Gutter (2) » Install

4. Back Body Opening Side Molding Bolt (1) » Install and tighten — Fastener Specifications

5. Liftgate Power Assist Actuator (1) » Install

6. Install the lower liftgate actuator clip.

Note

Component removed for graphic clarity.

7. Back Body Opening Side Lower Gutter (1) » Install

Note

Component removed for graphic clarity.

8. Back Body Opening Side Center Gutter (1) » Install
9. Close the liftgate.
