Front Seat Belt Retractor Replacement

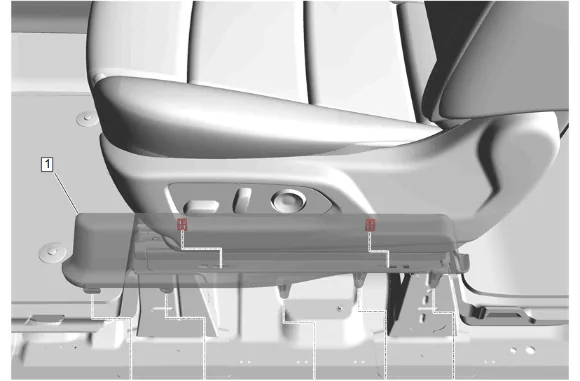

Using a suitable plastic trim tool, gently pry upwards to release the retaining clips.
Front Seat Adjuster Track Finish Cover (1) » Remove

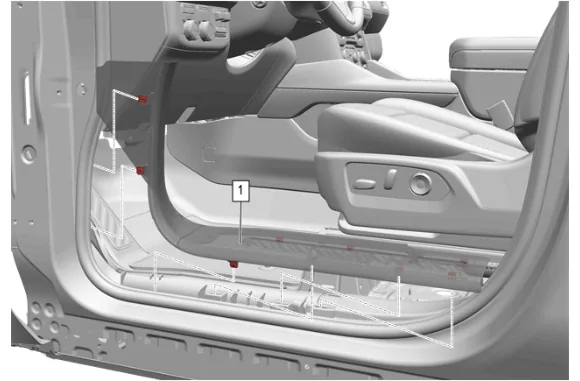

Starting at the rear of the front side door sill garnish molding (1) pull upward at the b-pillar joint to disengage the garnish molding.
Work your way forward disengaging all the front side door sill garnish molding retaining clips and then pull rearward to disengage the 2 retaining clips on the forward vertical wall.
Front Side Door Sill Garnish Molding (1) » Remove

Using a flat-bladed plastic trim tool, release the retaining clips.

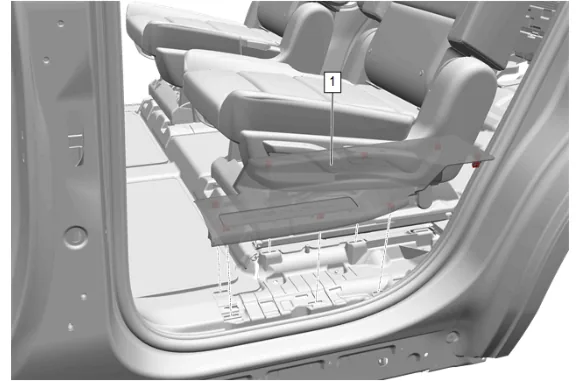

Pull upward from both sides of the rear side door sill garnish molding (1) to disengage retaining clips front to rear.
{ If equipped } Disconnect the electrical connector.
Rear Side Door Sill Garnish Molding (1) » Remove

Move the front seat fully forward.

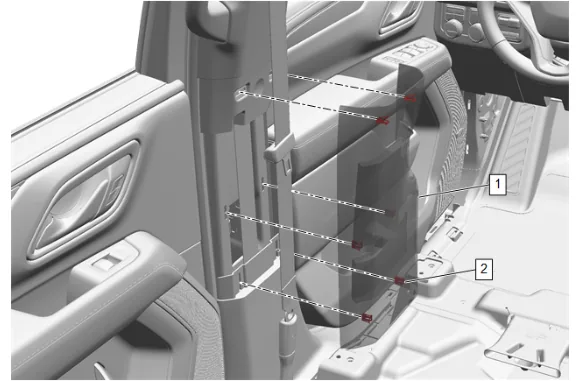

Use a flat bladed plastic tool between the center pillar center trim panel (1) and the center pillar upper trim panel to disengage the upper retaining clips (2).
Pull from both sides of the center pillar center trim panel (1) to release the middle and lower retaining clips (2) .
Center Pillar Center Trim Panel (1) » Remove

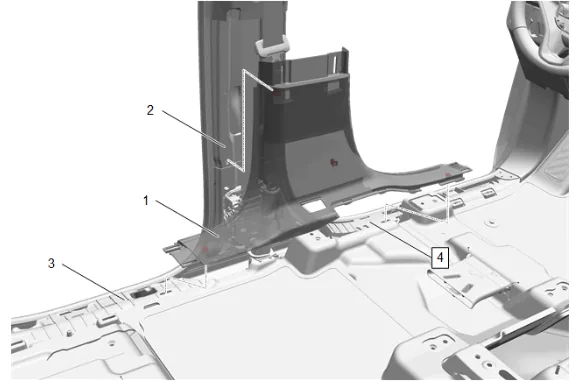

Use a flat bladed plastic tool to remove the center pillar lower garnish molding lower hole cover (1).

Use a flat bladed plastic tool between the center pillar lower trim panel (1) and the center pillar (2) to disengage retaining clips.
Pull upward from the front and rear of the panel to disengage the retaining clips from the rear side door sill trim plate bracket (3) and the front side door sill trim plate bracket (4).
Center Pillar Lower Trim Panel (1) » Remove

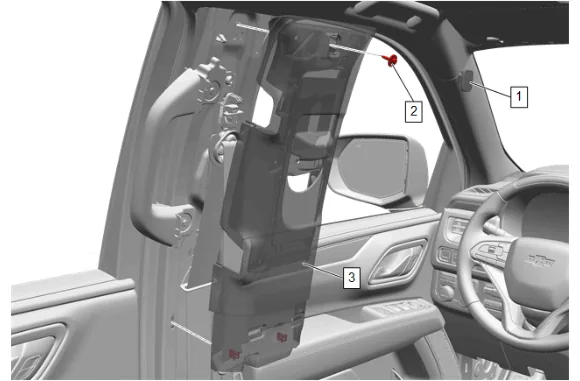

Center Pillar Upper Trim Panel Bolt Cap (1) » Remove
Center Pillar Upper Garnish Molding Bolt (2) » Remove
Pull the trim panel (3) toward the inside of the vehicle to disengage the retaining clips.
Center Pillar Upper Trim Panel (3) » Remove

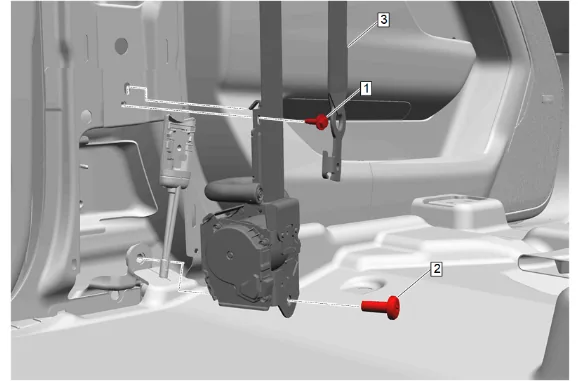

Front Seat Belt Retractor Bolt - Lower (2) » Install and tighten — Fastener Specifications
Front Seat Belt Retractor Bolt - Upper (1) » Install and tighten — Fastener Specifications
Connect the electrical connector.
Front Seat Belt Retainer (2) » Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 6.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 6.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 6.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 6.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

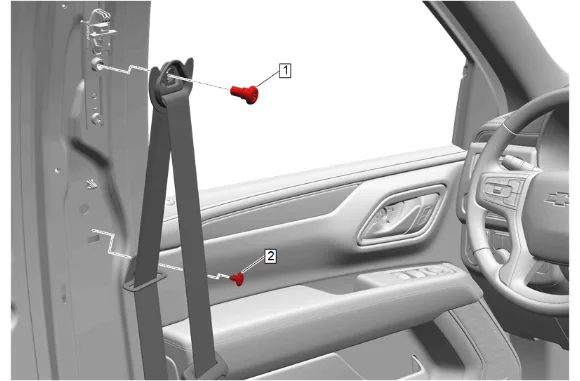

Front Seat Belt Retractor D Ring Bolt (1) » Install and tighten — Fastener Specifications

Center Pillar Upper Trim Panel (3) » Install
Center Pillar Upper Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications
Center Pillar Upper Trim Panel Bolt Cap (1) » Install

Center Pillar Lower Trim Panel (1) » Install
Center Pillar Lower Garnish Molding Lower Hole Cover (1) » Install
Install the seat belt to the anchor plate.
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 14.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 14.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 14.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 14.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

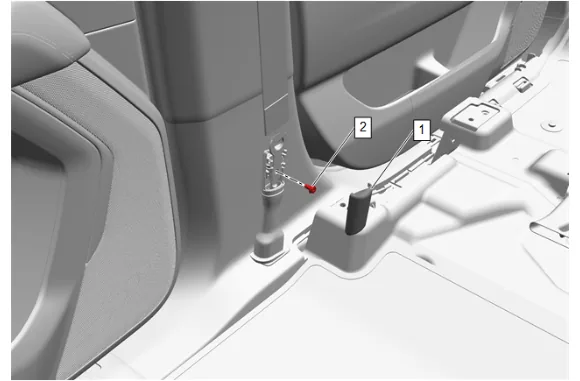

Front Seat Belt Anchor Plate Tensioner Bolt (2) » Install and tighten — Fastener Specifications
Front Seat Belt Anchor Plate Tensioner Cover (1) » Install
Center Pillar Center Trim Panel (1) » Install
{ If equipped } Connect the electrical connector.
Rear Side Door Sill Garnish Molding (1) » Install
Front Side Door Sill Garnish Molding (2) » Install
Front Seat Adjuster Track Finish Cover (1) » Install
Enable the SIR System. SIR Disabling and Enabling
