Head-Up Display Replacement

Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

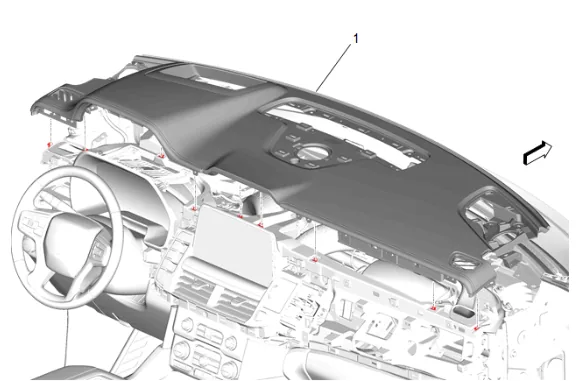

Head-Up Display Replacement — figure 1

2. Instrument Panel Upper Trim Panel (1) » Remove — Instrument Panel Upper Trim Panel Removal and Installation

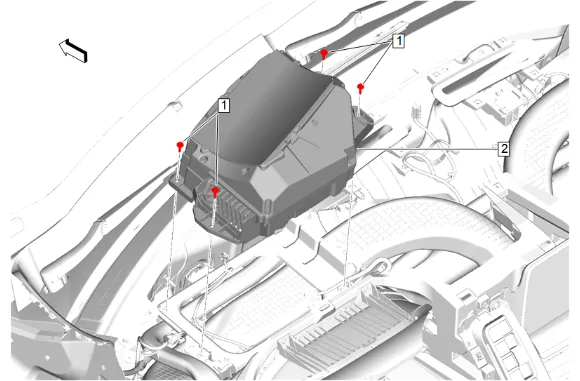

Head-Up Display Replacement — figure 2

3. Head-Up Display Bolt (1) » Remove [4x]

4. Disconnect the electrical connector.

5. Head-Up Display (2) » Remove Installation Procedure

6. Connect the electrical connector.

Note

Ensure that each tab on the head-up display is properly seated in the mating hole for proper alignment.

2. Head-Up Display (2) » Install

Caution

Refer to Fastener Caution.

3. Head-Up Display Bolt (1) » Install and tighten [4x] — Fastener Specifications

4. Instrument Panel Upper Trim Panel (1) » Install — Instrument Panel Upper Trim Panel Removal and Installation

5. Enable the SIR System. SIR Disabling and Enabling
