Front Seat Armrest Lid Replacement

Removal Procedure

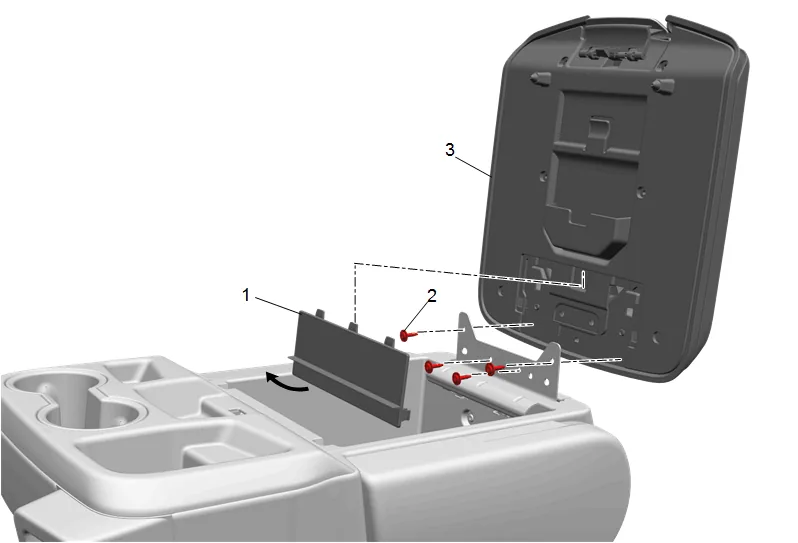

Front Seat Armrest Lid Replacement — figure 1

1. Pull outward and down on the bottom of the front seat armrest hinge finish cover to release the retaining tabs.

2. Front Seat Armrest Hinge Finish Cover (1) » Remove

3. Front Seat Armrest Lid Bolt (2) » Remove [4x]

4. Front Seat Armrest Lid (3) » Remove Installation Procedure

5. Front Seat Armrest Lid (3) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Armrest Lid Bolt (2) » Install and tighten [4x] — Fastener Specifications
3. Front Seat Armrest Hinge Finish Cover (1) » Install
