Tahoe / Yukon Service Manual

Accessory AC and DC Power Control Module Replacement (without 9C1)

Accessory AC and DC Power Control Module Replacement (without 9C1) Removal Procedure

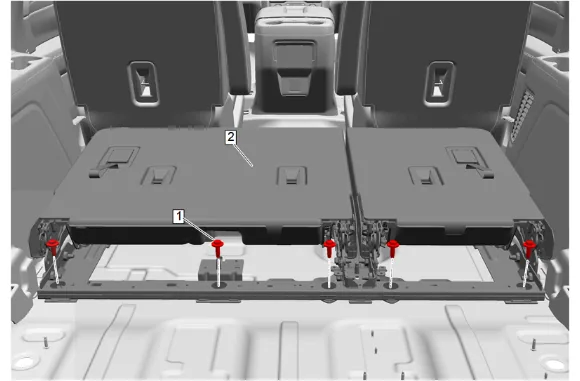

Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 1
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 1
  1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation
  2. Disable the SIR system. SIR Disabling and Enabling

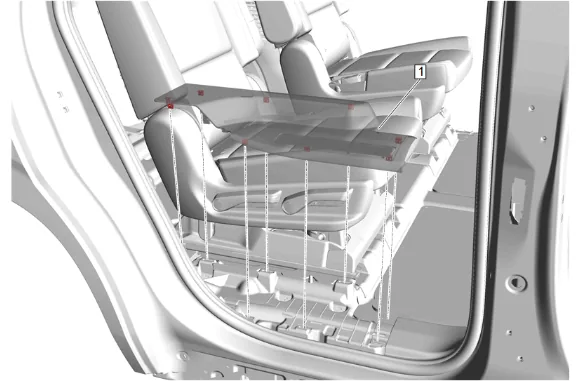

Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 2
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear Side Door Sill Garnish Molding (1) » Remove

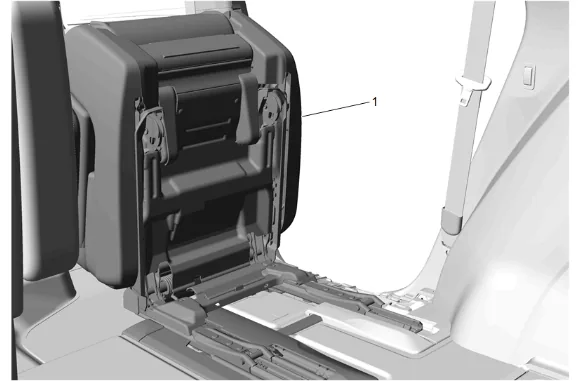

Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 3
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 3
  1. Place the rear seat (1) in the fold and tumble position.
  2. Liftgate Weatherstrip (1) » Reposition
  3. Liftgate Lock Striker Cover (1) » Remove
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 4
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 4
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear End Trim Finish Panel (1) » Remove
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 5
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 5
  1. Rear Seat Belt Retractor Sleeve (1) » Reposition
  2. Rear Seat Belt Anchor Plate Bolt (2) » Remove
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 6
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 6
  1. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
  2. Quarter Window Trim Finish Panel Bolt (2) » Reposition
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 7
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 7
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Lock Pillar Upper Trim Panel (1) » Reposition
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 8
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 8
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Side Rear Window Garnish Molding (1) » Reposition
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 9
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 9
  1. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 10
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 10
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Rear Corner Upper Garnish Molding (1) » Reposition
  3. 3rd Row Seat Belt Retractor Bolt - Lower (1) » Remove
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 11
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 11
  1. Convenience Net Retainer (1) » Remove
  2. Cargo Tie Down Loop Bolt Cap (2) » Open
  3. Cargo Tie Down Loop Bolt (3) » Remove
  4. Cargo Tie Down Loop (4) » Remove

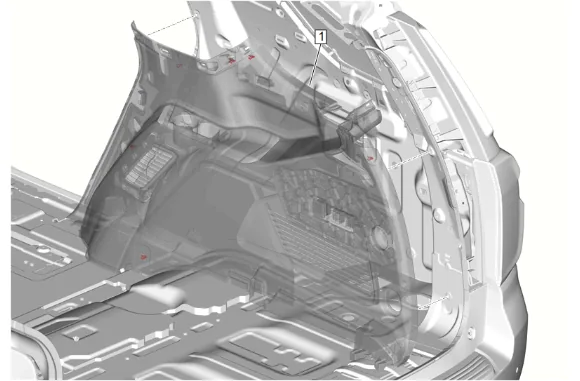

Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 12
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 12
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Quarter Lower Rear Trim Panel (1) » Reposition
  3. Remove the wiring harness retainers, as needed.

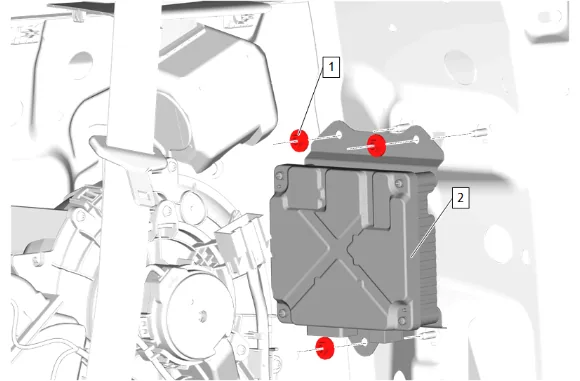

Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 13
Accessory AC and DC Power Control Module Replacement (without 9C1) — figure 13

  1. Disconnect the electrical connectors.

  2. Remove the wiring harness retainers.

  3. Accessory AC and DC Power Control Module Nut (1) » Remove [3x]

  4. Accessory AC and DC Power Control Module (2) » Remove Installation Procedure

  5. Accessory AC and DC Power Control Module (2) » Install

  1. Accessory AC and DC Power Control Module Nut (1) » Install and tighten [3x] — Fastener Specifications

  2. Connect the electrical connectors.

  3. Install the wiring harness retainers.

  4. Install the wiring harness retainers, as needed.

  5. Quarter Lower Rear Trim Panel (1) » Install

  6. Cargo Tie Down Loop (4) » Install

  7. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

  8. Cargo Tie Down Loop Bolt Cap (2) » Close

  9. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

  10. 3rd Row Seat Belt Retractor Bolt - Lower (1) » Install and tighten — Fastener Specifications

  11. Body Rear Corner Upper Garnish Molding (1) » Install

  12. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

  13. Body Side Rear Window Garnish Molding (1) » Install

  14. Body Lock Pillar Upper Trim Panel (1) » Install

  15. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

  16. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

  17. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

  18. Rear Seat Belt Retractor Sleeve (1) » Reposition

  19. Rear End Trim Finish Panel (1) » Install

  20. Liftgate Lock Striker Cover (1) » Install

  21. Liftgate Weatherstrip (1) » Reposition

  22. Return the rear seat (1) to the original position.

  23. Rear Side Door Sill Garnish Molding (1) » Install

  24. Enable the SIR System. SIR Disabling and Enabling

  25. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation
