Rear Seat Recliner Inner Finish Cover Replacement - Inboard (Bucket)

Rear Seat Recliner Inner Finish Cover Replacement - Inboard (Bucket) Removal Procedure

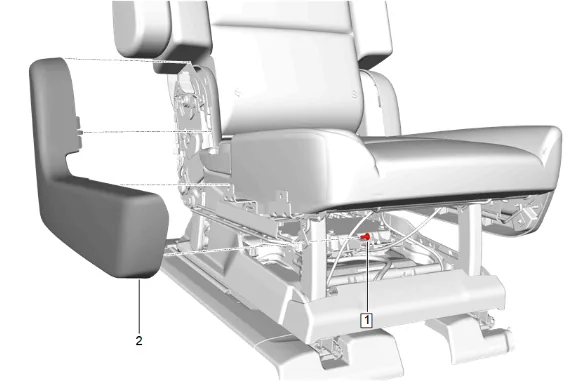

Rear Seat Recliner Inner Finish Cover Replacement - Inboard (Bucket) — figure 1

1. Front Seat Bolt (1) » Remove
2. Using a suitable plastic trim tool, release the retaining tabs.
3. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Remove

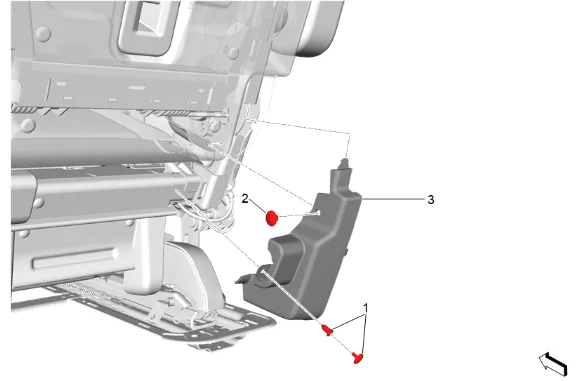

Rear Seat Recliner Inner Finish Cover Replacement - Inboard (Bucket) — figure 2

4. Reposition the rear of the rear seat cushion cover and pad as necessary.

5. Rear Seat Riser Finish Cover Retainer (1) » Remove

6. Rear Seat Back Cover Retainer (2) » Remove

7. Rear Seat Recliner Inner Finish Cover (3) » Remove Installation Procedure

8. Rear Seat Recliner Inner Finish Cover (3) » Install

9. Rear Seat Back Cover Retainer (2) » Install

10. Rear Seat Riser Finish Cover Retainer (1) » Install

11. Position the rear of the rear seat cushion cover and pad to the original location.

12. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Install

Caution

Refer to Fastener Caution.

6. Front Seat Bolt (1) » Install and tighten — Fastener Specifications
