Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement Removal Procedure

1. Disconnect the electrical connector.

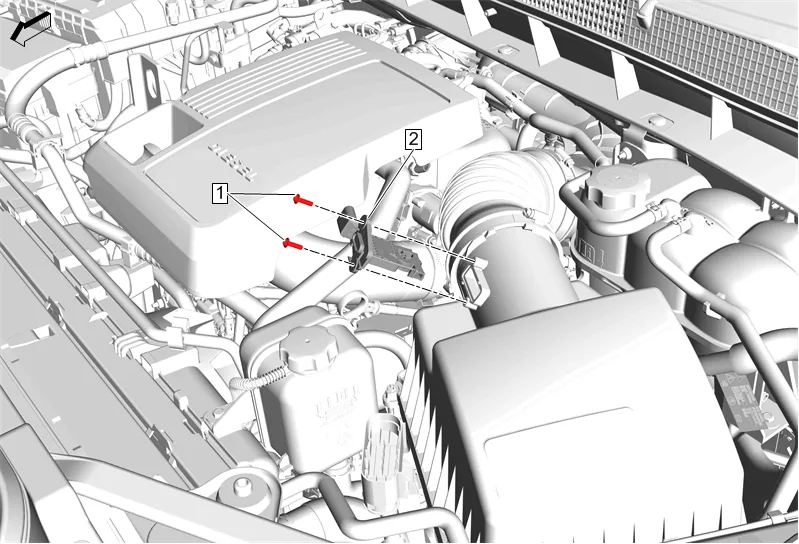

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement — figure 1

2. Mass Airflow Sensor Bolt (1) » Remove [2x]

3. Mass Airflow Sensor (2) » Remove Installation Procedure

4. Mass Airflow Sensor (2) » Install

Caution

Refer to Fastener Caution.

2. Mass Airflow Sensor Bolt (1) » Install and tighten [2x] — Fastener Specifications
3. Connect the electrical connector.
4. If replacing with new, perform the barometric pressure sensor reset. Barometric Pressure Sensor Reset
5. If replacing with new, perform the nitrogen oxides catalytic converter reductant loading reset. Nitrogen Oxides Catalytic Converter Reductant Loading Reset
