Auxiliary Battery Negative Cable Replacement (9C1, 5W4)

Removal Procedure

Auxiliary Battery Negative Cable Replacement (9C1, 5W4) — figure 1

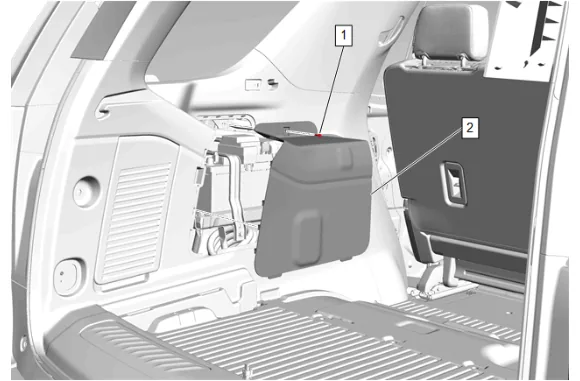

1. Quarter Upper Trim Panel Bolt (1) » Remove
2. Quarter Trim Panel Cover (2) » Remove

Auxiliary Battery Negative Cable Replacement (9C1, 5W4) — figure 2

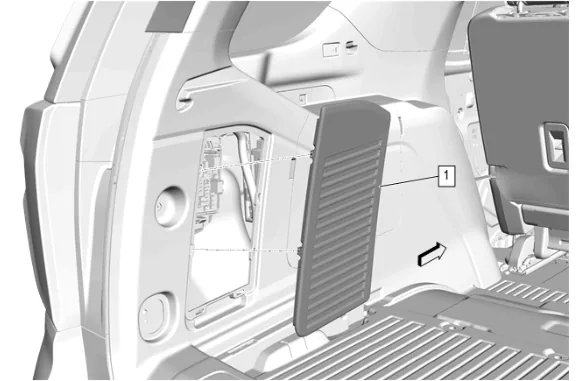

3. Quarter Stowage Pocket Door (1) » Remove
4. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

Auxiliary Battery Negative Cable Replacement (9C1, 5W4) — figure 3

Note

Quarter upper trim panel is removed for graphic quality.

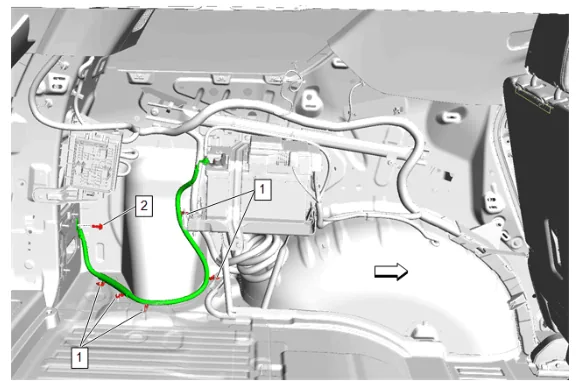

5. Retainer (1) » Disengage [5x]
6. Battery Negative Cable Ground Bolt (2) » Remove

Auxiliary Battery Negative Cable Replacement (9C1, 5W4) — figure 4

Note

Quarter upper trim panel is removed for graphic quality.

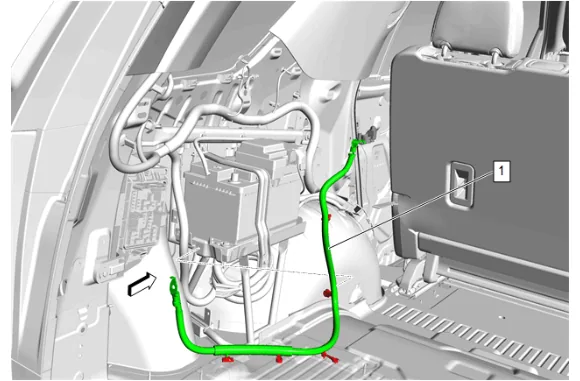

7. Auxiliary Battery Negative Cable (1) » Remove Installation Procedure

Note

Quarter upper trim panel is removed for graphic quality.

1. Auxiliary Battery Negative Cable (1) » Install

Note

Quarter upper trim panel is removed for graphic quality.

2. Retainer (1) » Engage [5x]

Caution

Refer to Fastener Caution.

3. Battery Negative Cable Ground Bolt (2) » Install and tighten — Fastener Specifications

4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

5. Quarter Stowage Pocket Door (1) » Install

6. Quarter Trim Panel Cover (2) » Install

7. Quarter Upper Trim Panel Bolt (1) » Install and tighten — Fastener Specifications
