Differential Carrier Ground Cable Replacement (G96)

Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

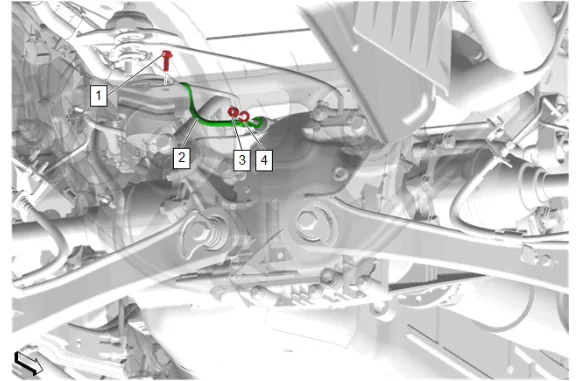

Differential Carrier Ground Cable Replacement (G96) — figure 1

Note

Some components not shown for graphic clarity.

2. Battery Cable Terminal Bolt (1) » Remove

Note

Hold the stud while loosening the nut to prevent differential leaks.

3. Differential Carrier Nut (3) » Remove
4. Differential Carrier Bracket Washer (4) » Remove
5. Differential Carrier Ground Cable (2) » Remove Installation Procedure

Note

Some components not shown for graphic clarity.

1. Differential Carrier Ground Cable (2) » Install
2. Differential Carrier Bracket Washer (4) » Install

Note

Hold the stud while tightening the nut to prevent differential leaks.

3. Differential Carrier Nut (3) » Install and tighten — Fastener Specifications
4. Battery Cable Terminal Bolt (1) » Install and tighten — Fastener Specifications
5. Lower the vehicle.
