Output Carrier Assembly and Output Carrier Thrust Bearings Removal (4WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 5065992 Output Carrier Assembly and Output Carrier Thrust Bearings Removal (4WD) Single Use Fasteners and Components Output Shaft Seal Output Shaft Seal [2x] Special Tools DT-50921 Output Carrier Lifter J-26941 Bushing and Bearing Remover Equivalent regional tools: Special Tools

Output Carrier Assembly and Output Carrier Thrust Bearings Removal (4WD) — figure 1

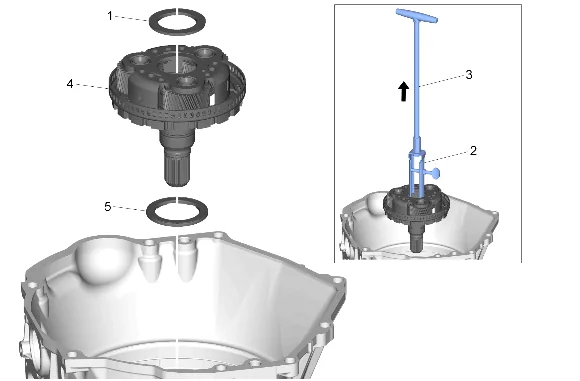

1. Output Carrier Thrust Bearing Assembly (1) » Remove
2. Install DT-50921 Output Carrier Lifter (2) and J-26941 Bushing and Bearing Remover (3) to the Output Carrier Assembly (4).
3. Output Carrier Assembly (4) » Remove
4. Output Carrier Thrust Bearing Assembly (5) » Remove

Output Carrier Assembly and Output Carrier Thrust Bearings Removal (4WD) — figure 2

5. Output Shaft Seal (1) » Remove and DISCARD
6. Output Shaft Seal (2) » Remove and DISCARD [2x]
