Tahoe / Yukon Service Manual

Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket)

Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket) Removal Procedure

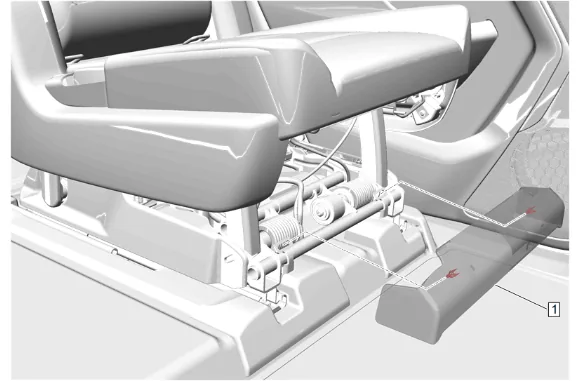

Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket) — figure 1
Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket) — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear Seat Riser Finish Cover (1) » Remove
Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket) — figure 2
Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket) — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clip.
  2. Rear Seat Riser Finish Cover (1) » Remove

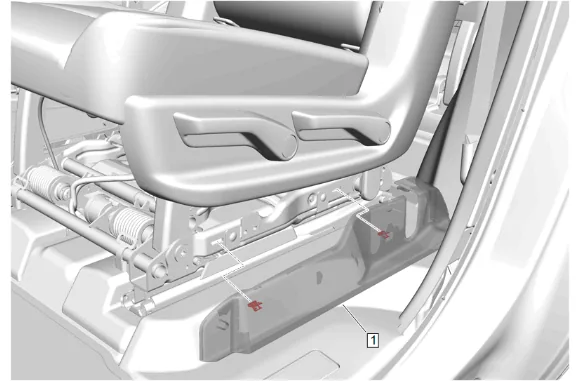

Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket) — figure 3
Rear Seat Riser Inner Finish Cover Replacement - Outboard (40 Percent, Bucket) — figure 3

  1. Using a flat-bladed plastic trim tool, release the retaining clips.

  2. Using a suitable plastic trim tool, release the retaining tabs.

  3. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove Installation Procedure

  4. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

  5. Rear Seat Riser Finish Cover (1) » Install

  6. Rear Seat Riser Finish Cover (1) » Install
