Tahoe / Yukon Service Manual

3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion

3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion Removal Procedure

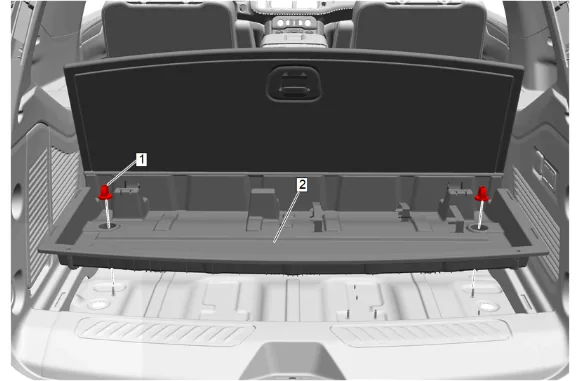

3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion — figure 1
3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion — figure 1
  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Remove [2x]
  2. Rear Compartment Floor Stowage Trim Compartment (2) » Remove

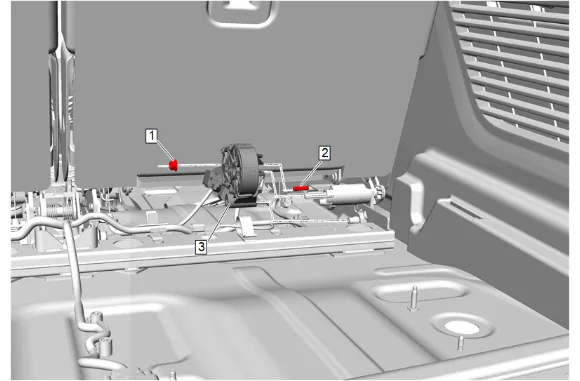

3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion — figure 2
3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion — figure 2

  1. Remove the 3rd row seat back pivot actuator motor nut (1) from the 3rd row seat back pivot actuator motor bolt (2).

  2. Disconnect the wiring harness retainers.

  3. Disconnect the electrical connectors.

  4. 3rd Row Seat Back Pivot Actuator Motor (3) » Remove Installation Procedure

  5. 3rd Row Seat Back Pivot Actuator Motor (3) » Install

  6. Connect the electrical connectors.

  7. Connect the wiring harness retainers.

  1. Install and tighten the 3rd row seat back pivot actuator motor nut (1) to the 3rd row seat back pivot actuator motor bolt (2). Fastener Specifications

  2. Rear Compartment Floor Stowage Trim Compartment (2) » Install

  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Install and tighten [2x] — Fastener Specifications
