Temperature Valve Actuator Replacement - Left Side

Removal Procedure

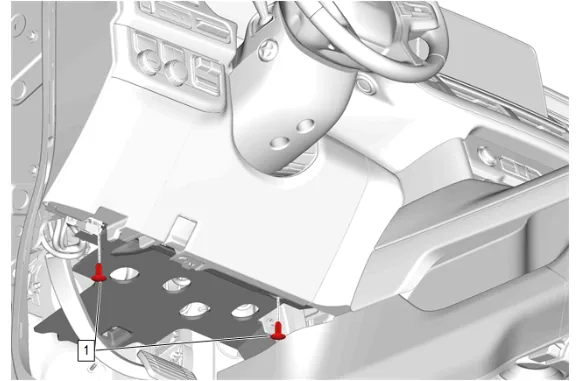

Temperature Valve Actuator Replacement - Left Side — figure 1

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

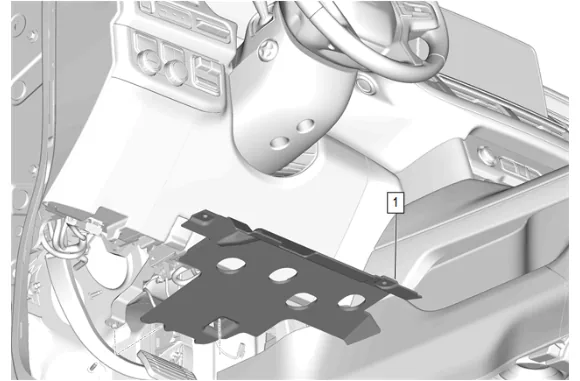

Temperature Valve Actuator Replacement - Left Side — figure 2

2. Instrument Panel Lower Trim Panel Insulator - Left Side (1) » Remove

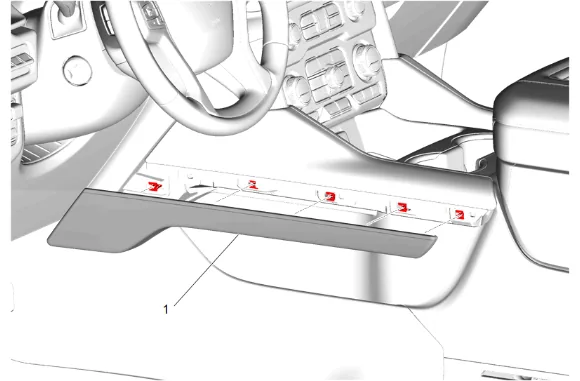

Temperature Valve Actuator Replacement - Left Side — figure 3

3. Front Floor Console Lower Applique (1) » Remove

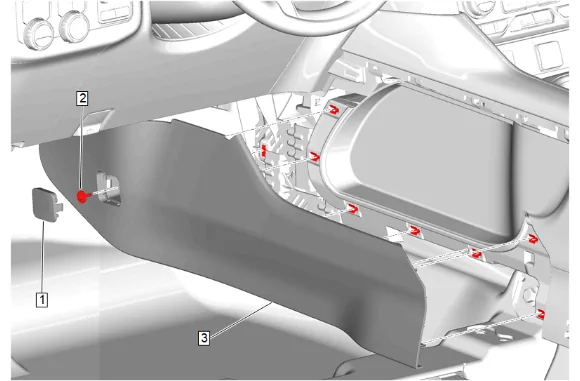

Temperature Valve Actuator Replacement - Left Side — figure 4

4. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
5. Front Floor Console Extension Bolt (2) » Remove
6. Position the front seat rearward to access the retainers.
7. Front Floor Console Extension Panel - Left Side (3) » Remove

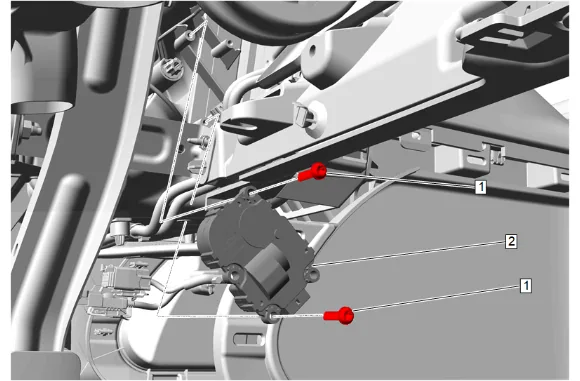

Temperature Valve Actuator Replacement - Left Side — figure 5

8. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]

9. Temperature Valve Actuator - Left Side (2) » Remove

10. Disconnect the electrical connector. Installation Procedure

11. Connect the electrical connector.

12. Temperature Valve Actuator - Left Side (2) » Install

Caution

Refer to Fastener Caution.

3. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Front Floor Console Extension Panel - Left Side (3) » Install

5. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

7. Front Floor Console Lower Applique (1) » Install

8. Instrument Panel Lower Trim Panel Insulator - Left Side (1) » Install

9. Instrument Panel Lower Insulator Retainer (1) » Install [2x]
