Tahoe / Yukon Service Manual

Roof Panel Joint Finish Molding Replacement (9C1)

Removal Procedure

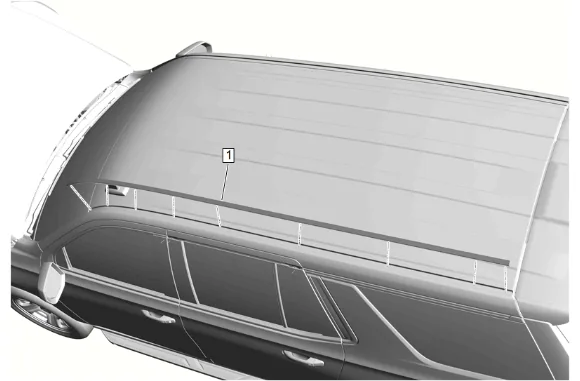

Roof Panel Joint Finish Molding Replacement (9C1) — figure 1
Roof Panel Joint Finish Molding Replacement (9C1) — figure 1

  1. Apply two layers of masking tape to the painted surface around the edge of the roof panel joint finish molding (1) to prevent paint damage.

  2. Using a plastic trim-type tool and starting at the front of the roof panel joint finish molding (1), release the retainers from the roof panel weld studs.

  3. Roof Panel Joint Finish Molding (1) » Remove

  4. Clean any debris from the roof panel joint finish molding (1). Installation Procedure

  5. Roof Panel Joint Finish Molding (1) » Install

  6. Remove the double layer of masking tape around the perimeter of the painted surfaces.
